33 00... Rear Axle: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

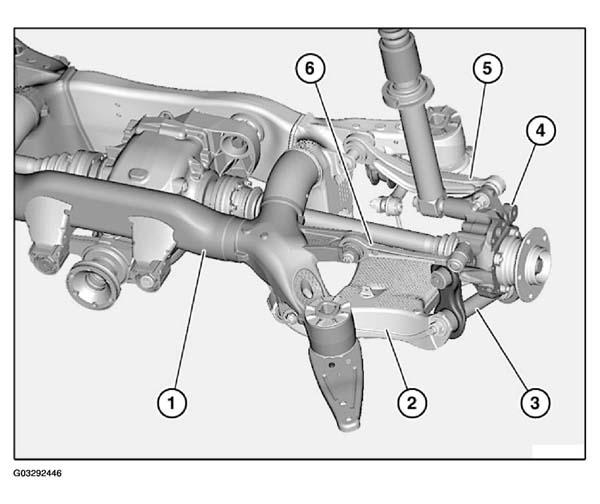

A wheel/chassis alignment check must be carried out after the following work: refer to 32 00 150 STANDARD CHASSIS/WHEEL ALIGNMENT WITH DIN LOAD and 32 00 155 CHASSIS/WHEEL ALIGNMENT WITHOUT LOAD .
- Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier.
- Swinging arm to integral link / wheel carrier
- Integral link to wheel carrier
- Guide arm to rear axle carrier.
- Control arm to rear axle carrier.
- Replacement of following parts:
- Rear axle carrier.
- Swinging arm.
- Integral link.
- Wheel carrier/ball joint.
- Control arm.
- Guide arm.
