32 00 610 Adjusting Toe-In And Camber On Front Axle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

Special Tools Required:

IMPORTANT: Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

The centering pin may only be driven or twisted out if the camber is outside the specified tolerance after toe adjustment.

Adjust Toe-In:

If necessary, remove steering gear cover at side.

Move steering into straight-ahead position by means of markings on cap (1) and steering gear (2).

Align steering wheel and secure with steering wheel arrester.

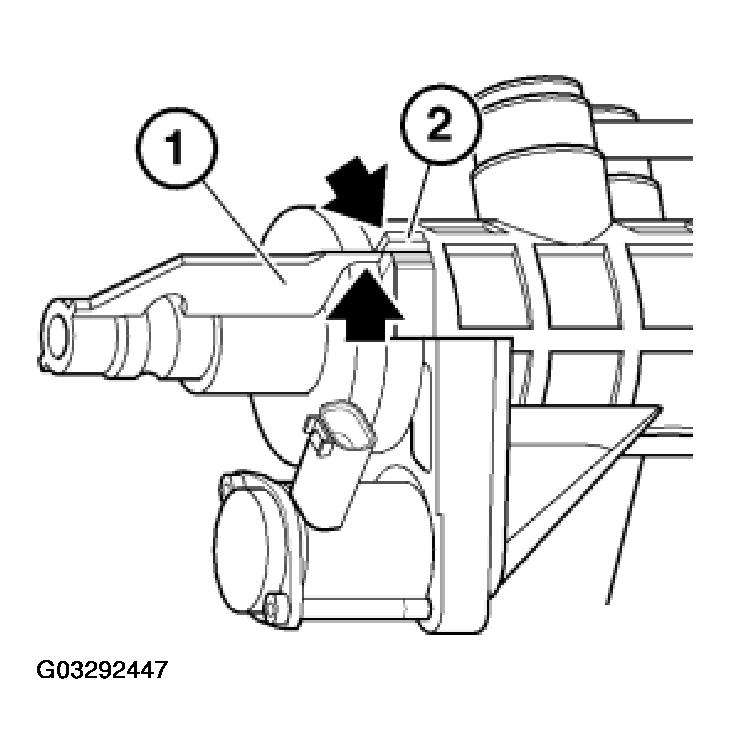

Fig 1: Alignment Marks On Cap And Steering Gear
G03292447Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on tie rod.

Slacken clamping nut (1), gripping tie rod end (3) in the process.

Turn tie rod (2) to adjust toe-in to specified value.

Tighten down clamping nut (1).

Tightening torque, refer to 32 21 5AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

If necessary, correct installation position of gaiter.

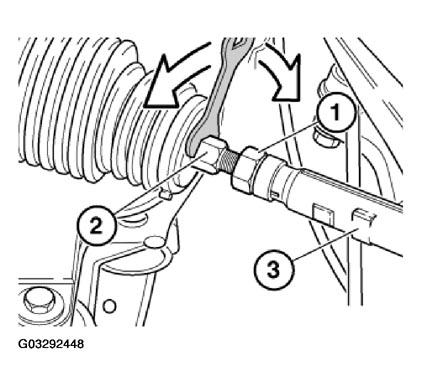

Fig 2: Clamping Nut, Tie Rod End, Tie Rod And Removal Directions
G03292448Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting Camber:

Remove protective cap.

Twist out centering pin (1).

Clean wheel arch from below in area of support bearing with compressed air.

Slacken nut (2) approx. 1 to 1.5 turns.

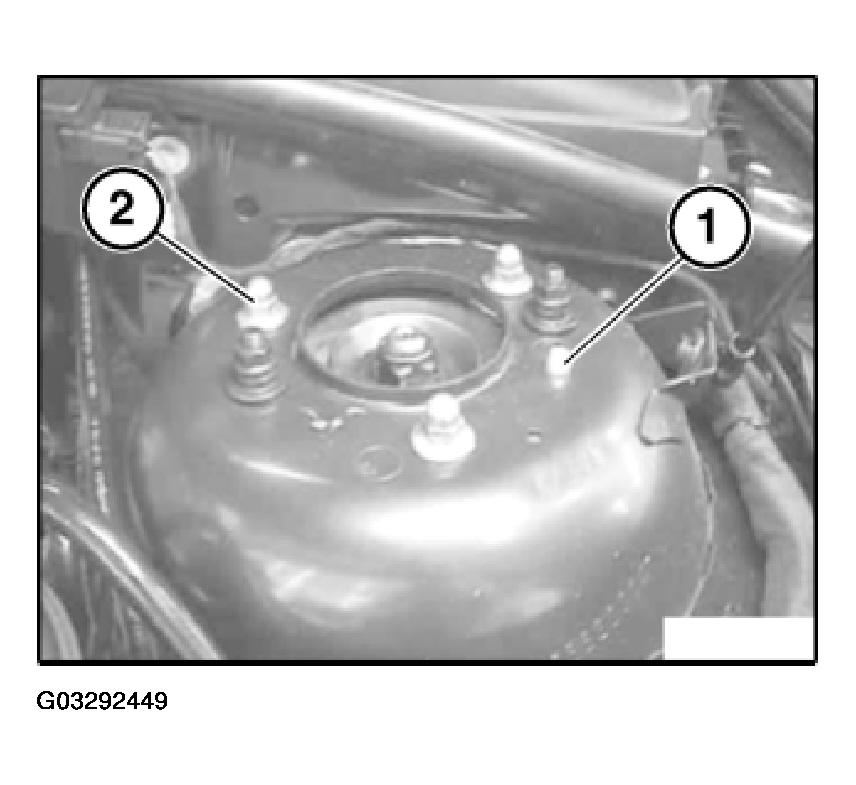

Fig 3: Centering Pin And Nut
G03292449Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 32 3 140 into wheel arch opening and over nut.

Replace nuts (3) and screw on but do not tighten down fully.

Turn nut (4) in special tool 32 3 140 to adjust camber to set point value.

Tighten down nuts (3).

Tightening torque, refer to 31 31 1AZ in TORQUE SPECIFICATIONS .

Remove special tool 32 3 140 in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

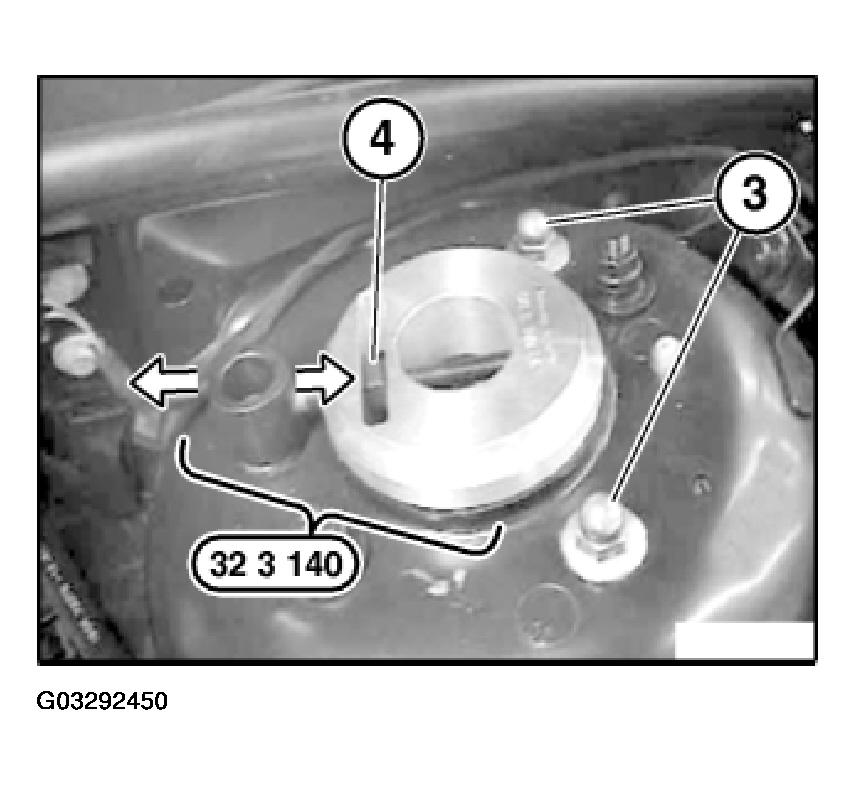

Fig 4: Adjusting Camber, Nuts, Special Tool (32 3 140) And Removal Directions
G03292450Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (2) and tighten down.

Tightening torque, refer to 31 31 1AZ in TORQUE SPECIFICATIONS .

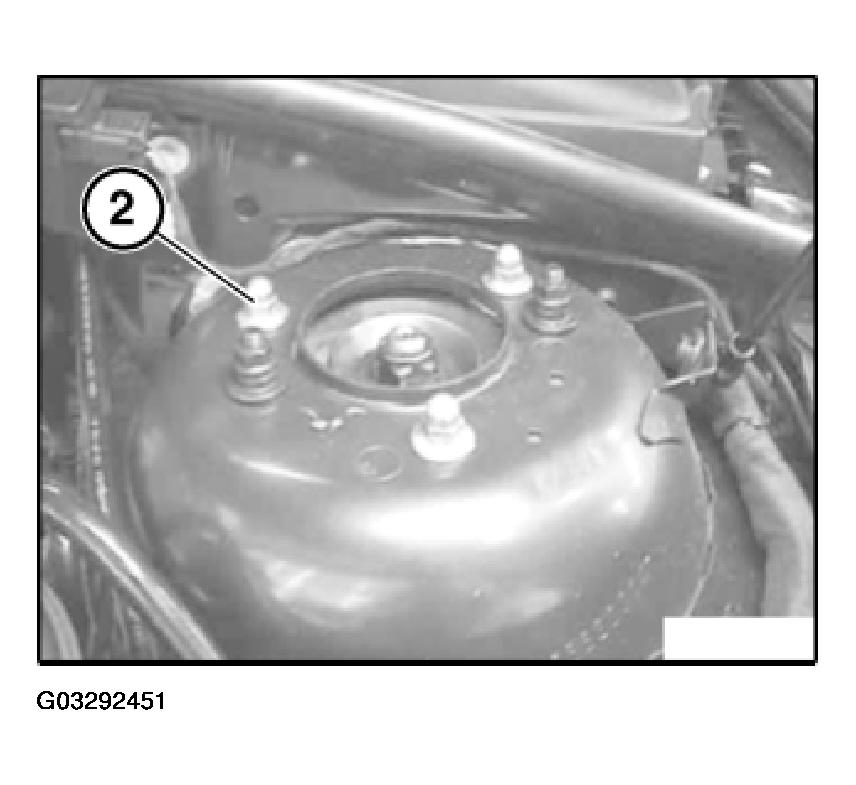

Fig 5: Adjustment Nut
G03292451Courtesy of BMW OF NORTH AMERICA, INC.

After Installation:
