Hydraulic Unit Abs/ASC+T, DSC3 (Up To 09/98): Removal
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Turn off ignition. Disconnect negative battery terminal.
- Draw brake fluid out of expansion tank with a suction device reserved for exclusive use with brake fluid.

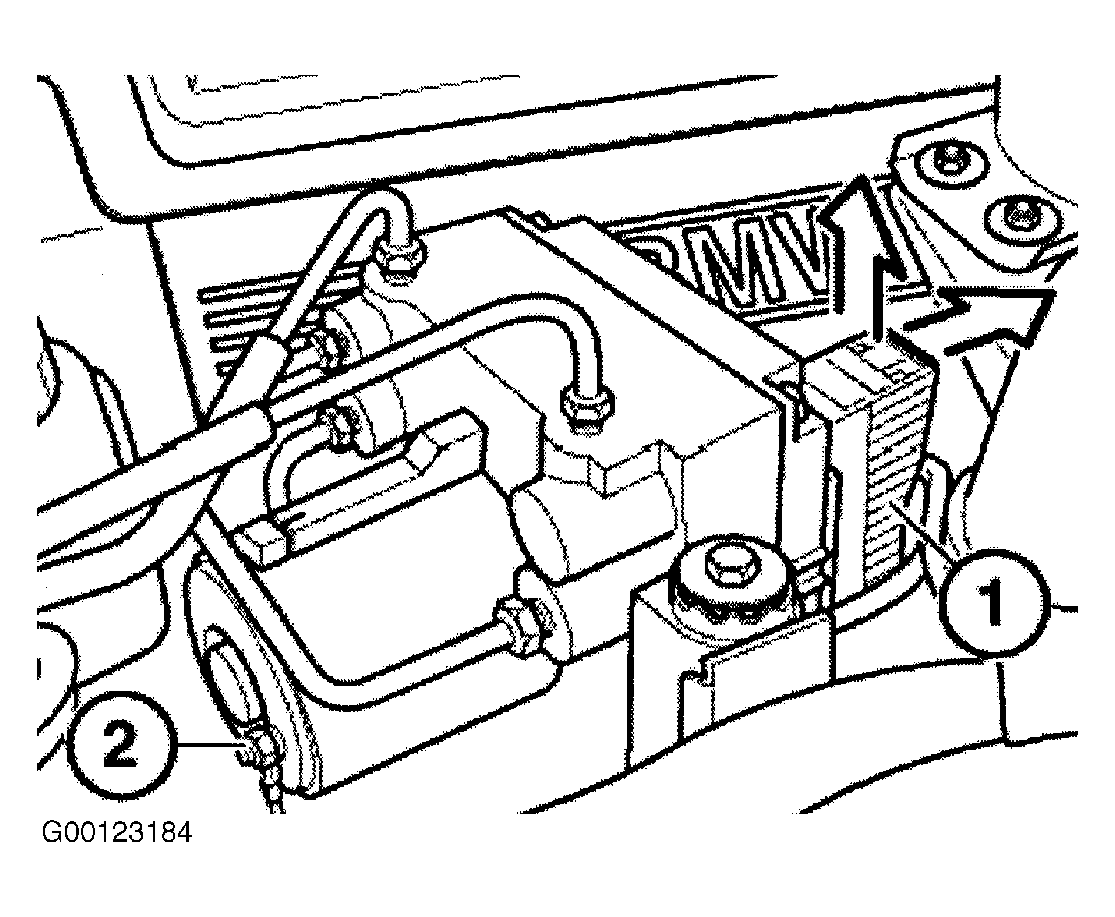

- Unlock central connector (1) and pull off. Unfasten nut (2) and remove ground wire. See Fig 1 .
- Unfasten brake lines. Do not mix up brake lines. Mark, if necessary, before removal.
- Unfasten screw and remove hydraulic control unit. See Fig 2 .
CAUTION:
Keep brake fluid out of cable connector.
