Hydraulic Unit Abs/ASC+T, DSC3 (Up To 09/98): Installation
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

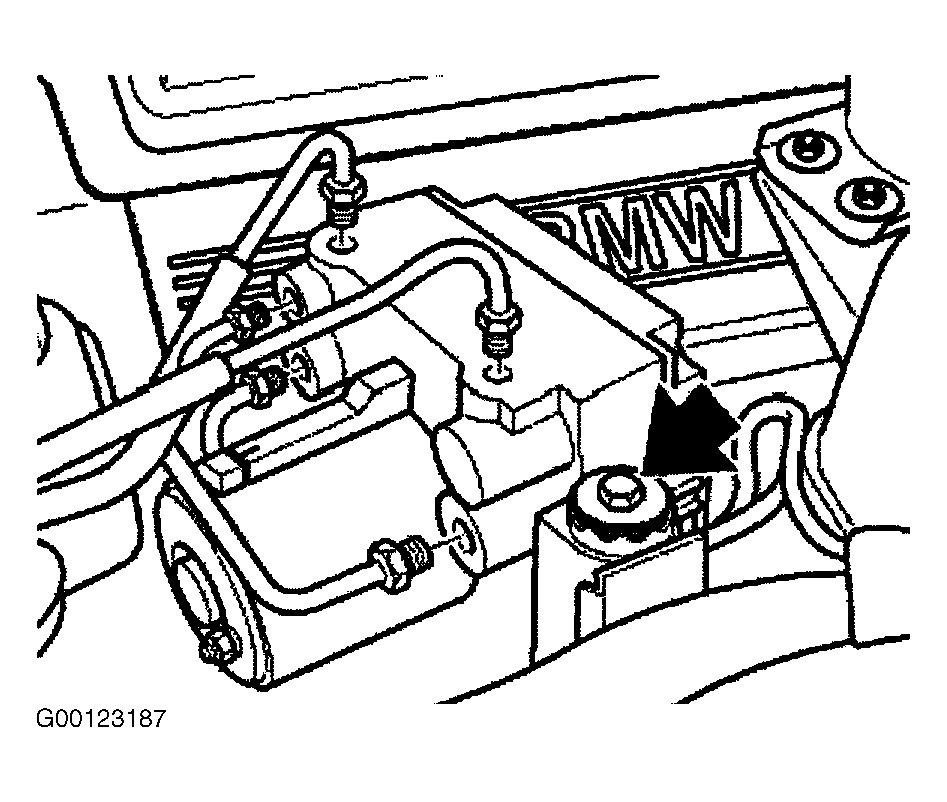

- Install hydraulic control unit and fasten screw. See Figure .
- Install pipe connections. Tighten to specification. See TORQUE SPECIFICATIONS .

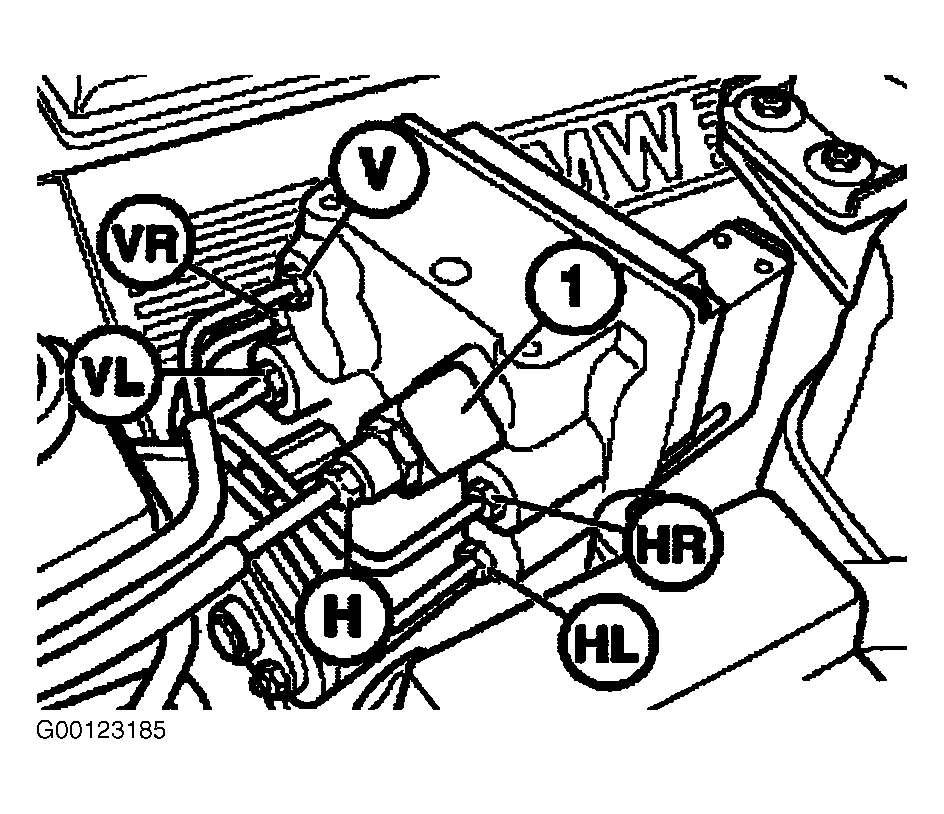

- Note position of diaphragm flow damper (1). See Fig 1 .

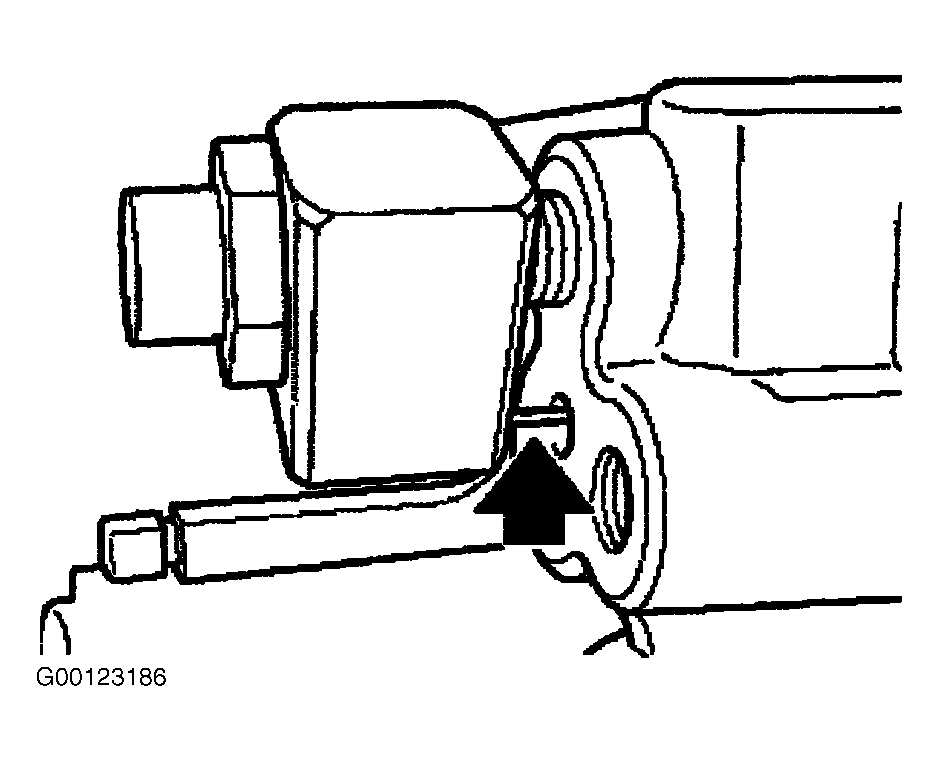

- The diaphragm flow damper pin must engage in the bore. See Fig 2 .
- Tighten diaphragm flow damper to specification. See TORQUE SPECIFICATIONS .
- Connect ground wire and replace central connector.
- Refill expansion tank.
- Connect battery lead.
- Bleed brake system. See appropriate DISC article.
- Check function of hydraulic control unit with Diagnosis and Information System.
