32 13... Checking Distance Between Engine Carrier And Stem Of Double Joint/Installing Power Steering Gear Straightened

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the distance between engine carrier and stem of double joint is less than 5 mm, the steering gear must be installed "straightened"!

Unfasten screws.

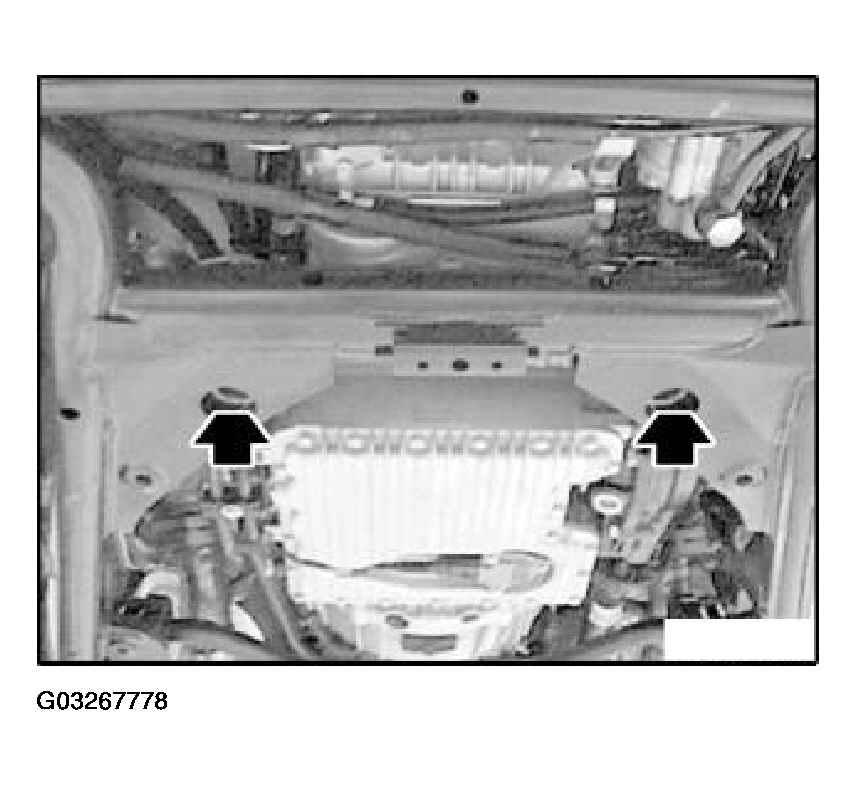

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press steering gear on left side in direction of travel to rear and on right side forwards against stop.

This is done in reverse sequence on RHD vehicles!

This ensures the maximum distance between engine carrier and stem of double joint.

Replace self-locking nuts.

Tightening torque, 32 00 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
