32 41... Instructions For Removing And Installing Ear Clips

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 260

NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

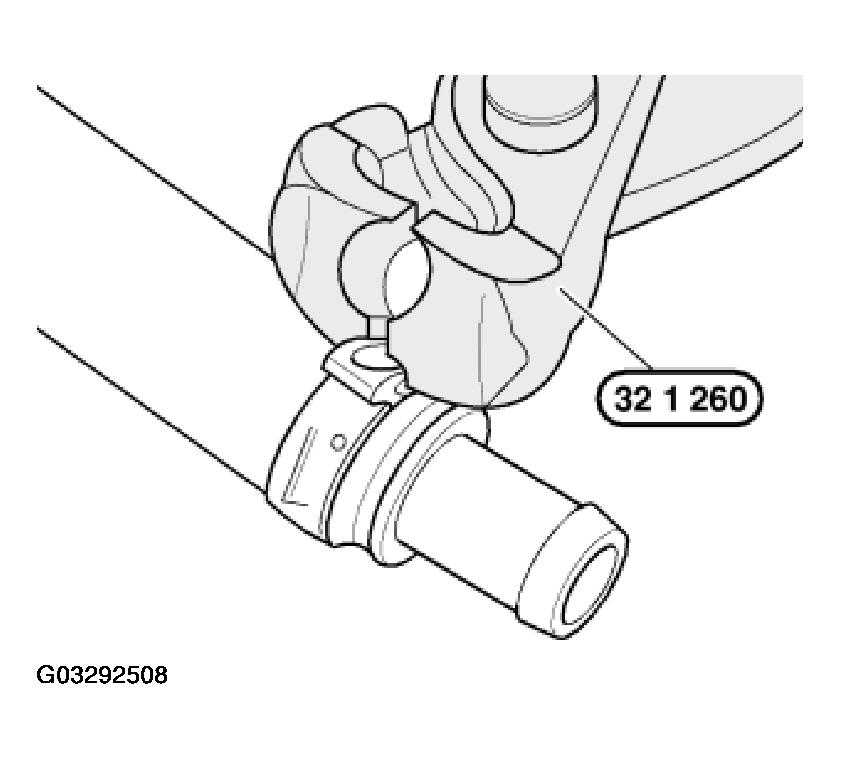

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

Fig 1: Cutting Ear Clip Using Special Tool

G03292508

Courtesy of BMW OF NORTH AMERICA, INC.

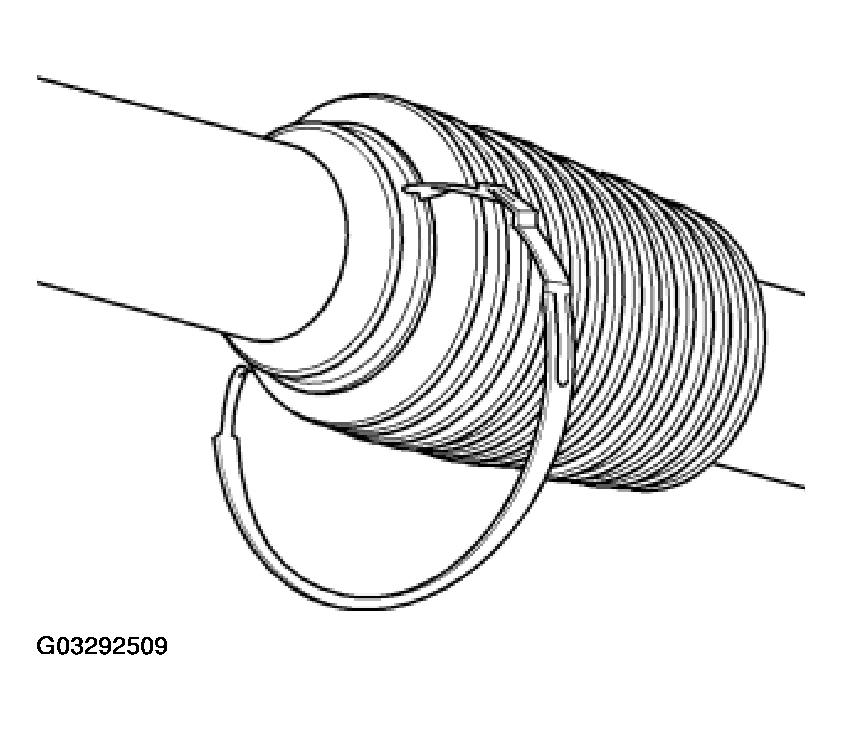

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Fig 2: Fitting Ear Clip

G03292509

Courtesy of BMW OF NORTH AMERICA, INC.

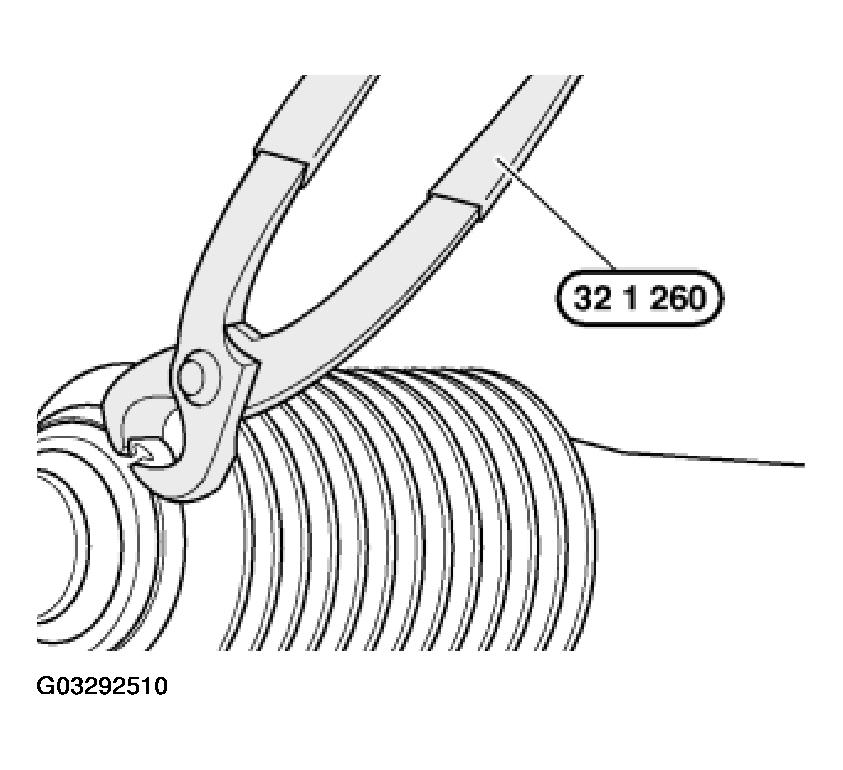

Attach hook fastener and press ear together with special tool 32 1 260.

Fig 3: Attaching Hook Fastener Using Special Tool

G03292510

Courtesy of BMW OF NORTH AMERICA, INC.

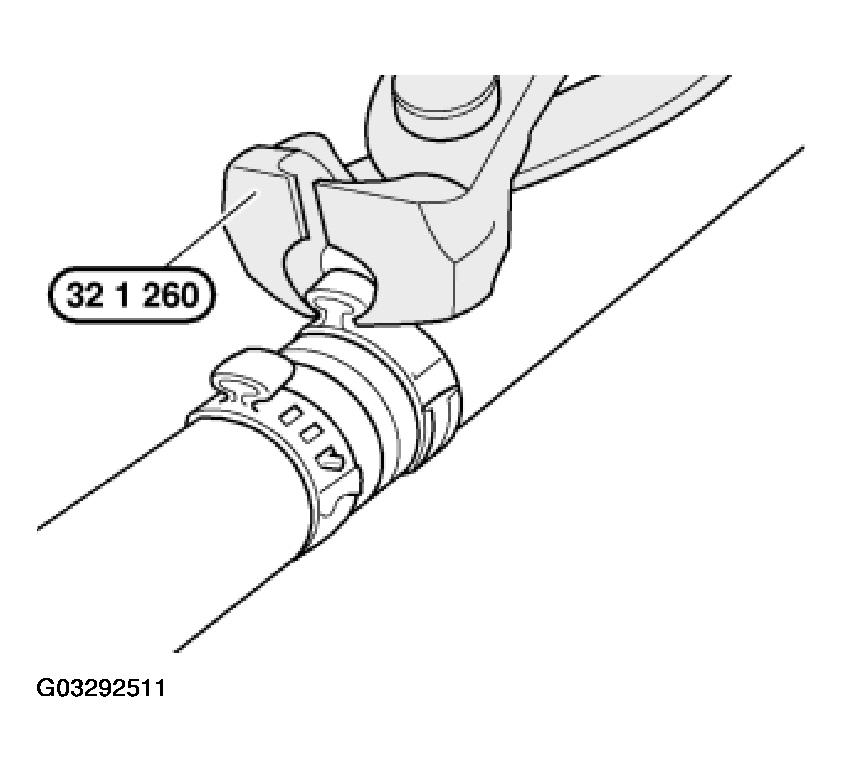

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access.

Fig 4: Identifying Side Cutter

G03292511

Courtesy of BMW OF NORTH AMERICA, INC.

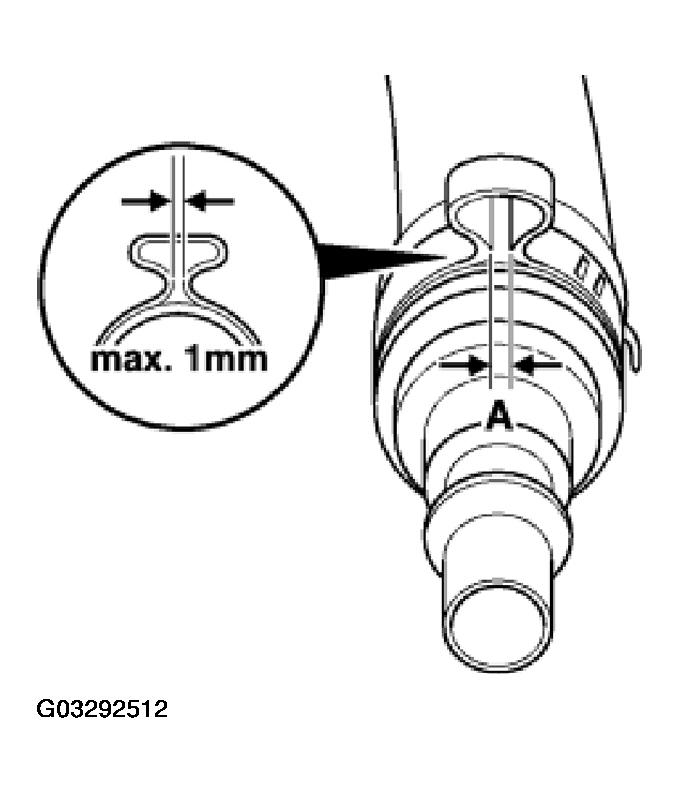

IMPORTANT: Gap (A) max. 1 mm!

Fig 5: Identifying Gap A

G03292512

Courtesy of BMW OF NORTH AMERICA, INC.
