32 31 070 Removing And Installing/Replacing Lower Section Of Steering Spindle

Necessary preliminary tasks:

• Remove trim for instrument panel at bottom left, refer to 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT
• Carry out steering angle sensor adjustment, refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT
• Turn steering wheel in both directions to full lock
  NOTE: The airbag warning lamp must not light up in the process.
• Check directional stability of vehicle

Move steering wheel to straight-ahead position and remove ignition key.

Remove upper clamping screw on clamp.

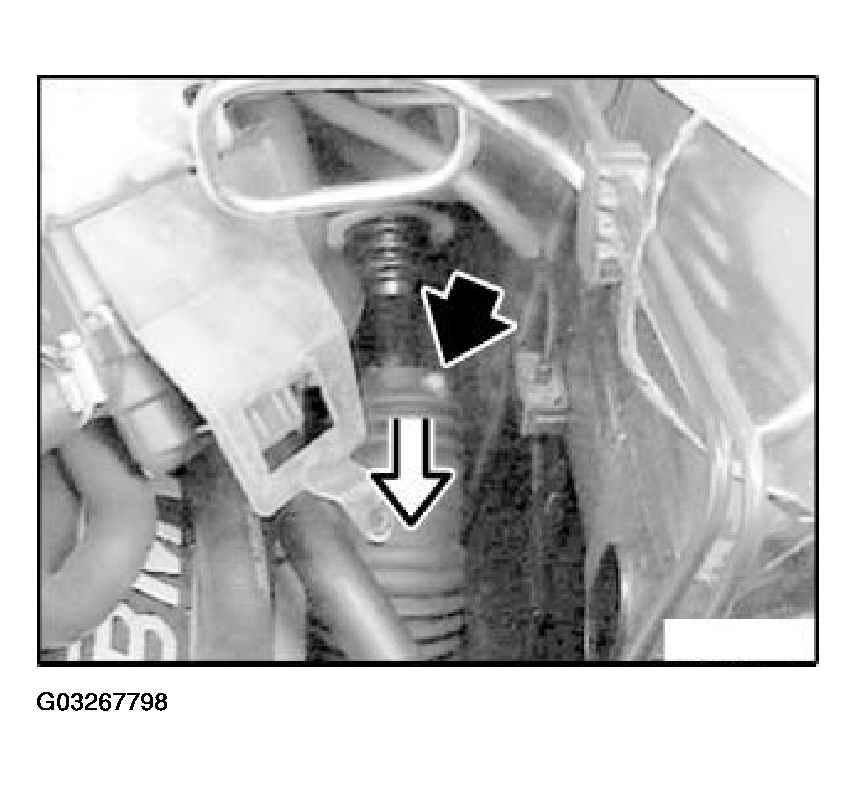

Fig 1: Removing Upper Clamping Screw On Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Move steering wheel to straight-ahead position

Remove ignition key in this position.

Pull steering spindle out of clamp.

Installation:

Move steering gear to straight-ahead position- markings on cap and on housing must line up.

Tightening torque, 32 31 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Unfasten nut and remove screw.

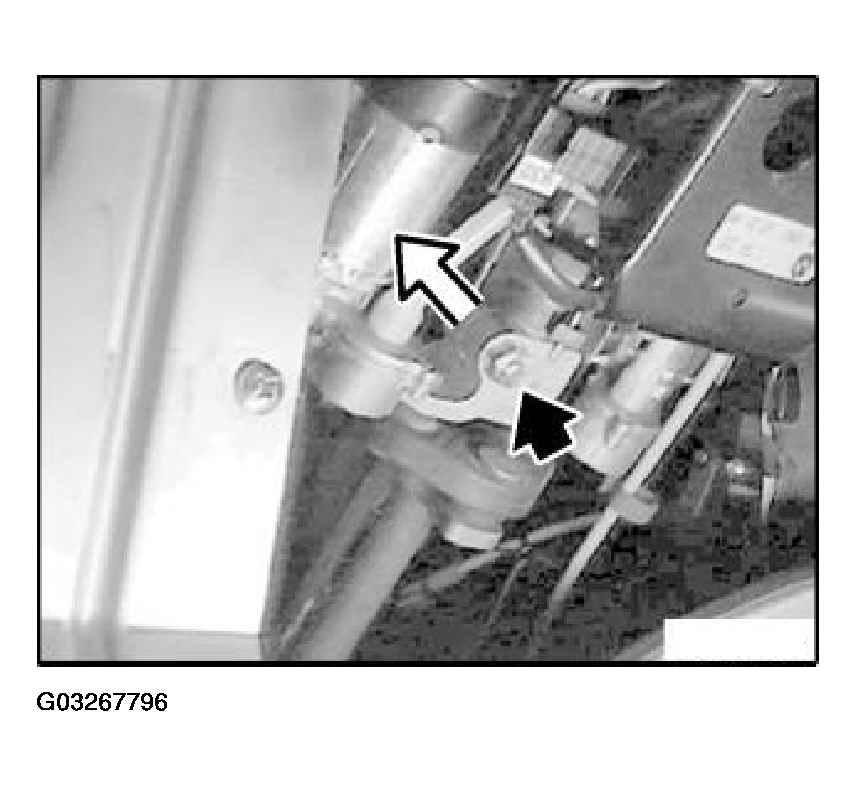

Fig 2: Removing Lower Section Of Steering Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lower section of steering spindle from steering column.

Installation:

Replace self-locking nut.

Tightening torque, 32 31 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Release screws and press heating valves to one side.

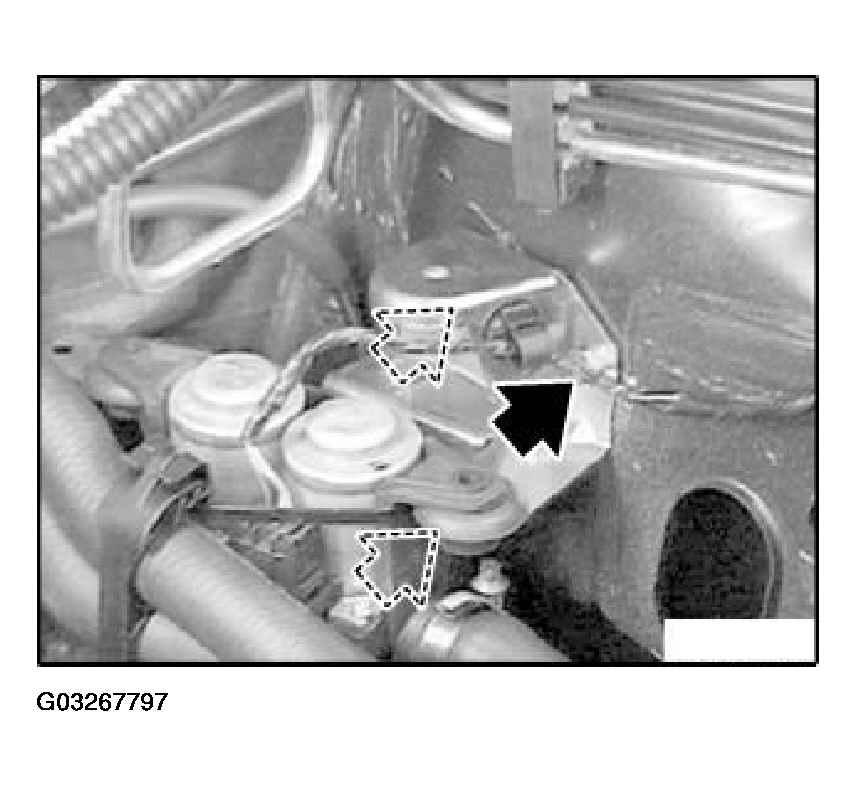

Fig 3: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamping screw.

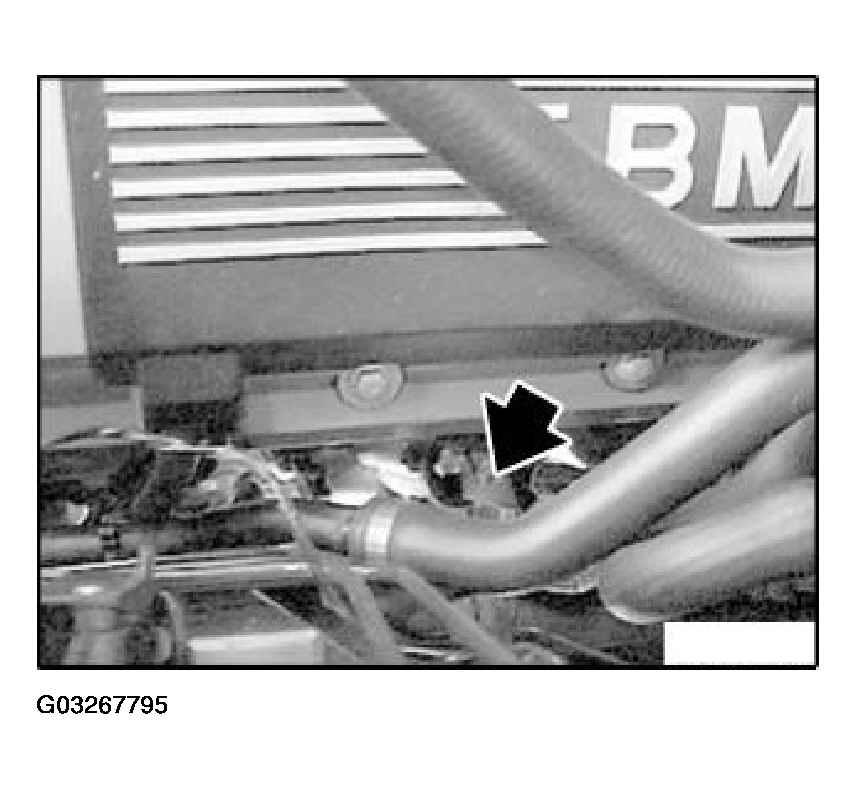

Fig 4: Removing Clamping Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach double joint from power steering gear.

Pull out lower section of steering shaft from inside through bulkhead.

Installation:

Replace clamping screw.

Tightening torque, 32 31 1AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
