32 41... Instructions For Using Special Tool 32 4 000

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 4 000
32 4 004
32 4 005
32 4 006
32 4 011
32 4 012

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

1 = Connection, pump

2 = Connection, steering gear

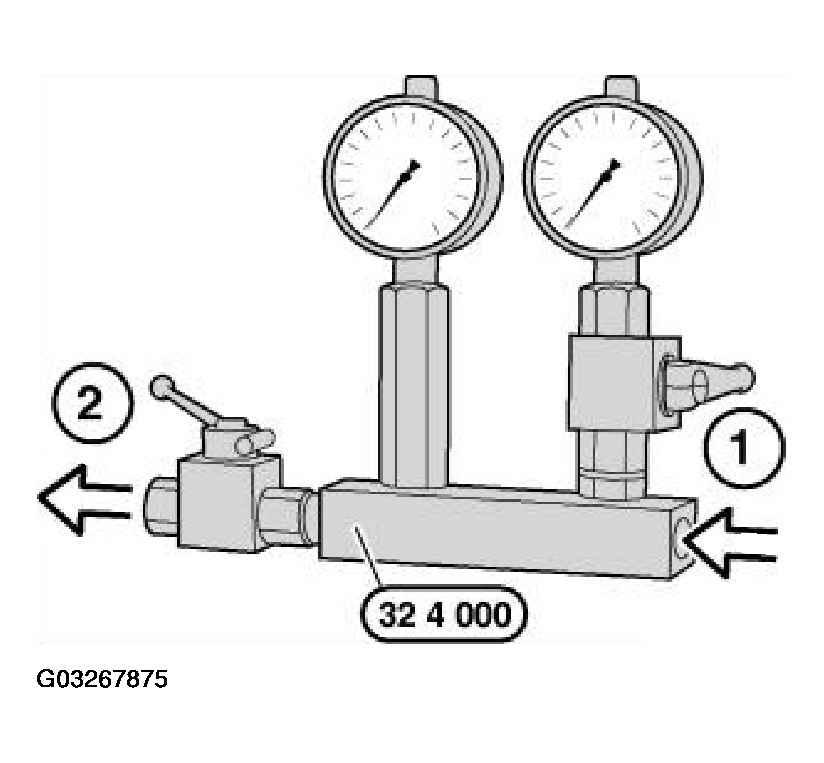

Fig 1: Identifying Pump And Steering Gear Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

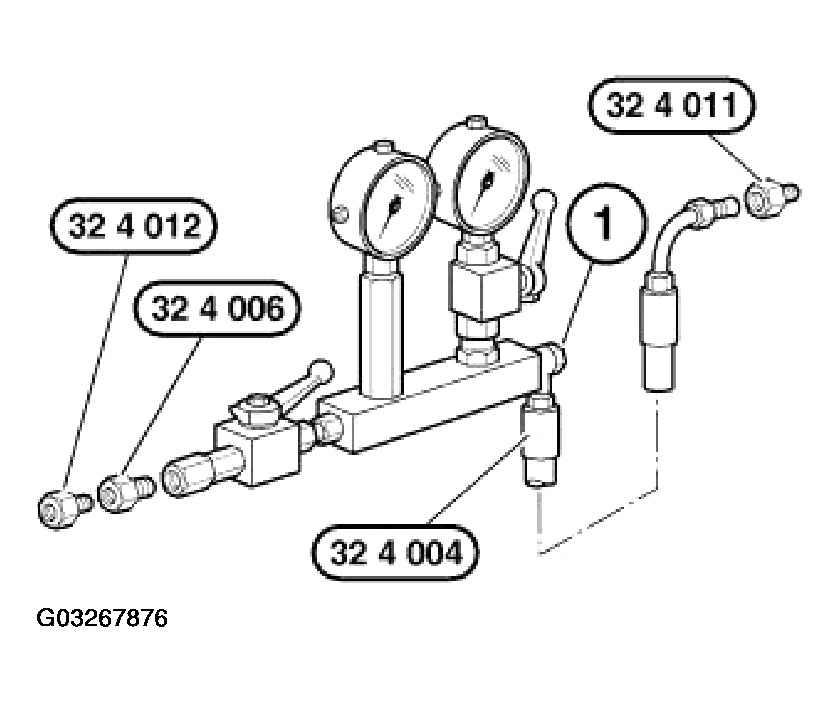

Fig 2: Connecting Pressure Hose To Pump With M14 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.

Screw special tools 32 4 006 / 32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.

Pressure hose connection to pump with M16 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

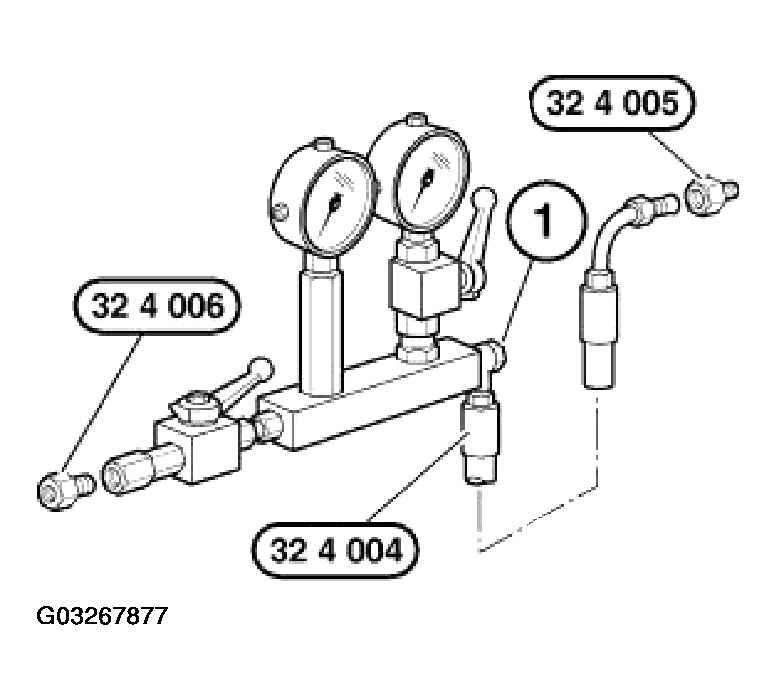

Fig 3: Connecting Pressure Hose To Pump With M16 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.

Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings.

Pressure hose connection to pump with M16 x 1.5 union screw:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

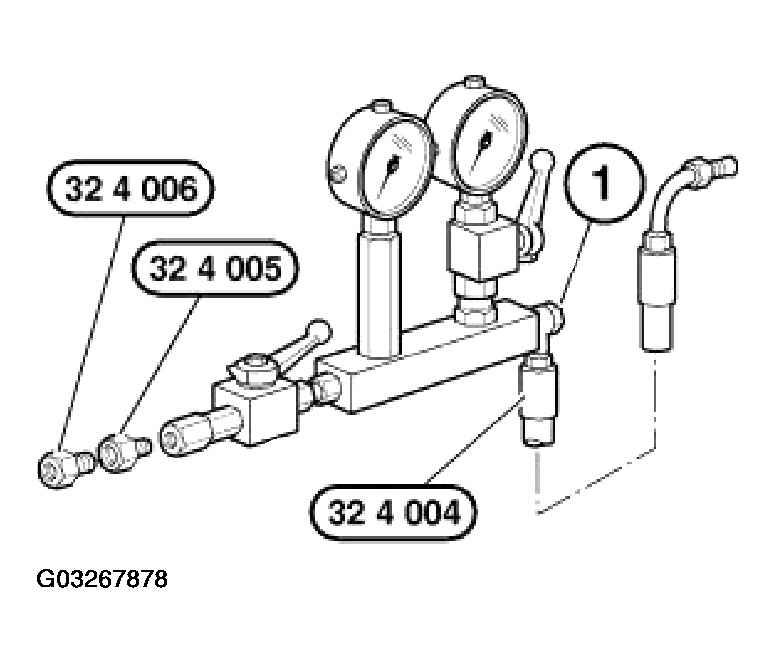

Fig 4: Connecting Pressure Hose To Pump With M16 X 1.5 Union Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool 32 4 004 to pump.

Screw special tools 32 4 006 / 32 4 005 onto special tool 32 4 000 and connect pressure hose.
