System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

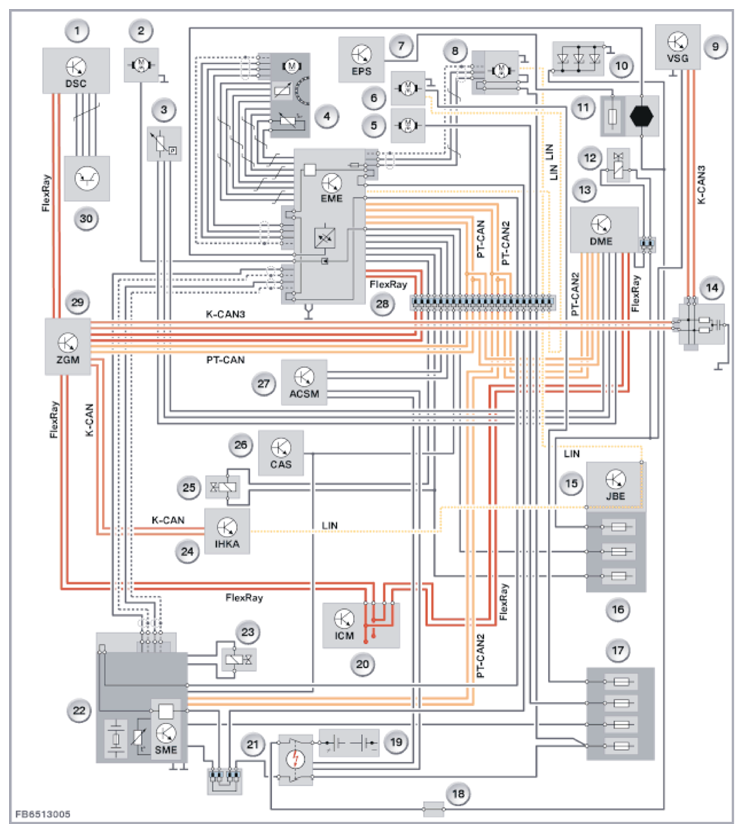

The following graphic shows the functional networking in the hybrid drive using the example F0x, F1x.
| Item | Explanation |
|---|---|
| 1 | Dynamic stability control (DSC) |
| 2 | Electric vacuum pump |
| 3 | Brake vacuum sensor |
| 4 | Electric machine |
| 5 | Transmission oil pump |
| 6 | Auxiliary water pump |
| 7 | Electronic Power Steering (EPS) |
| 8 | Electric A/C compressor |
| 9 | Vehicle Sound Generator (VSG) |
| 10 | Reverse polarity protection |
| 11 | Jump start terminal point |
| 12 | Electric changeover valve for engine mounts |
| 13 | Digital engine electronics |
| 14 | Terminating resistor |
| 15 | Junction Box Electronics (JBE) |
| 16 | Distribution box (junction box) |
| 17 | Power distribution box, right rear |
| 18 | Body connection point |
| 19 | Battery |
| 20 | Integrated chassis management (ICM) |
| 21 | Safety battery terminal |
| 22 | Battery management electronics (SME) |
| 23 | Refrigerant shutoff valve (high-voltage battery) |
| 24 | Integrated automatic heating/air conditioning (IHKA) |
| 25 | Refrigerant shutoff valve (front) |
| 26 | Car access system (CAS) |
| 27 | Crash Safety Module (ACSM) |
| 28 | Electrical machine electronics (EME) |
| 29 | Central gateway module (ZGM) |
| 30 | Brake pedal angle sensor |
