RDC control unit
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The RDC control unit processes the messages sent by the wheel electronics. Above a speed of 20 - 30 km/h, the following messages are sent by the electronics on each wheel:
- Tire pressure
- Tire air temperature
- Remaining service life of the battery
- Data from the acceleration sensor and Identification Feature (ID) of the wheel electronics
These messages are then transmitted directly to the RDC control unit via a high-frequency transmission path (433 MHz), where they are then evaluated. The measuring cycle of the wheel electronics amounts to 3 second, with transmission to the RDC control unit taking place every 30 seconds. The current status of the messages is sent to the CAN bus (body CAN) and is then rendered visible by the indicating instruments. The installation location for the RDC control unit is in the outer area on the vehicle underbody behind the rear axle.

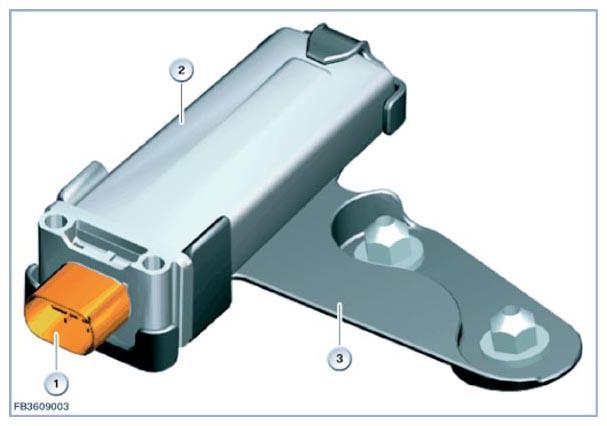

| Item | Explanation |
|---|---|
| 1 | 4-pin plug connection |
| 2 | RDC control unit |
| 1 | Holder |
