Parking brake button
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The parking brake button is located in the center console behind the gear lever switch (GWS). With the engine running or vehicle moving: The parking brake has a hydraulic effect on the disc brakes of the front and rear axle via the DSC. With the engine off and vehicle at a standstill: The parking brake employs Bowden cables and the electromechanical actuator unit to operate the drum brakes on the rear axle. Driving off against the blocked brake pressure leads to another pressure increase and a Check Control message. Starting the engine leads to a switch from electromechanical to hydraulic parking brake engagement.

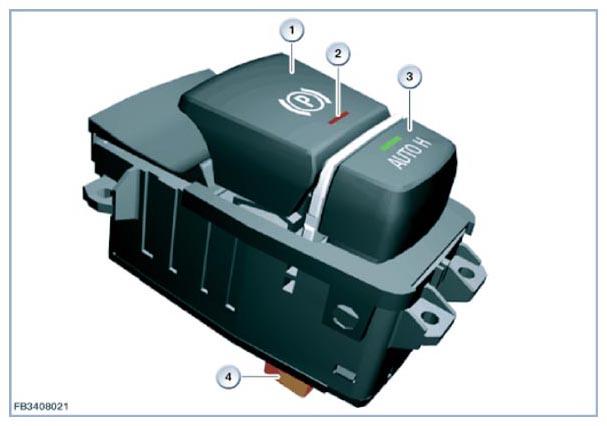

| Index | Explanation |
|---|---|
| 1 | Parking brake button |
| 2 | Function indicator light |
| 3 | Automatic Hold button with function indicator light |
| 4 | Twelve-pin plug connection |
The DSC receives additional input signals from the following components:
