Transfer box

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The separate oil pump in the transfer box is dispensed with. This improves the efficiency.

Sufficient levels of lubrication and cooling are assured through the delivery of oil via the spur gear unit.

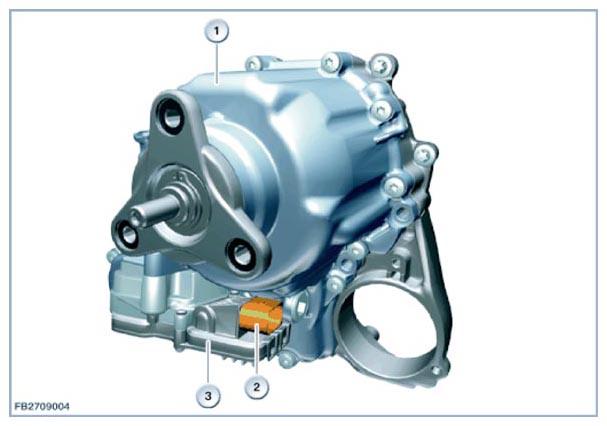

Fig 1: Identifying Transfer Box And Plug Connection
G09908053Courtesy of BMW OF NORTH AMERICA, INC.

Example F01, ATC 350

Item Explanation
1 Transfer box
2 eight-pin plug connection
3 Control unit transfer box (VTG)

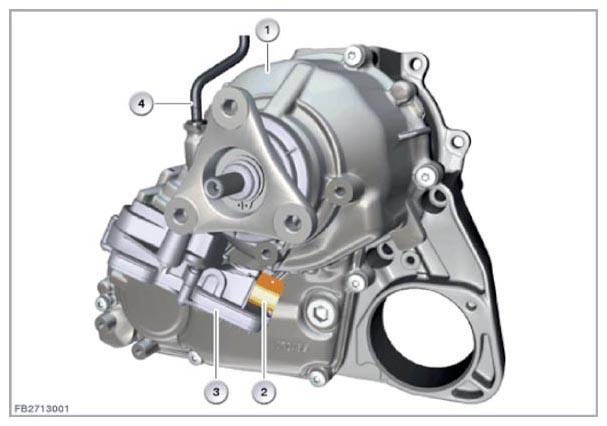

Fig 2: Identifying Control Unit Transfer Box And Plug Connection
G09908054Courtesy of BMW OF NORTH AMERICA, INC.

Example F15, ATC450L

Item Explanation
1 Transfer box
2 eight-pin plug connection
3 Control unit transfer box (VTG)
4 Tank ventilation line
