Center console operating facility
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The Hill Descent Control is operated via the center console operating facility (HDC button).
The lower switch block in the center console operating facility is electrically connected to the controller (CON).

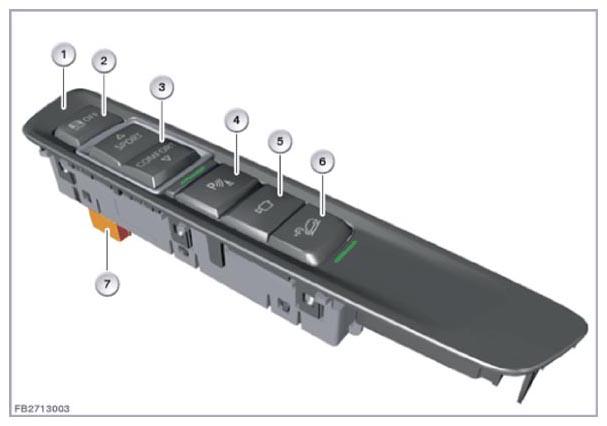

F15 shown
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | DTC button |
| 3 | Drive experience switch |
| 4 | Parking Assist button |
| 5 | Side View Camera button |
| 6 | Hill Descent Control button (HDC button) |
| 5 | 12-pin plug connection |
