System overview

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

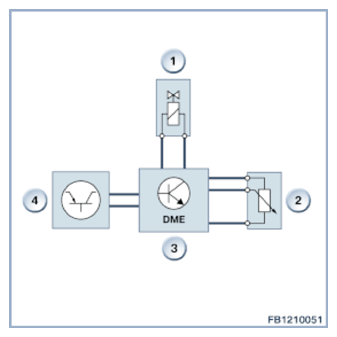

Fig 1: DME - Circuit Diagram
G09910061Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Oil pressure regulating valve
2 Oil pressure sensor
3 Digital engine electronics (DME)
4 Oil condition sensor
