Oil pressure sensor

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The oil pressure sensor monitors the lubricating system. The oil pressure indicator light lights up if the oil pressure does not exceed a defined value. This value is approx. 0.2 to 0.5 bar. The oil pressure sensor is connected across a signal line with the of the Digital Engine Electronics (DME). If the switch is not operated, there is a voltage of 12 Volts on this signal line; if the switch is operated, there is a voltage of 0 Volts. The data interchange is digital.

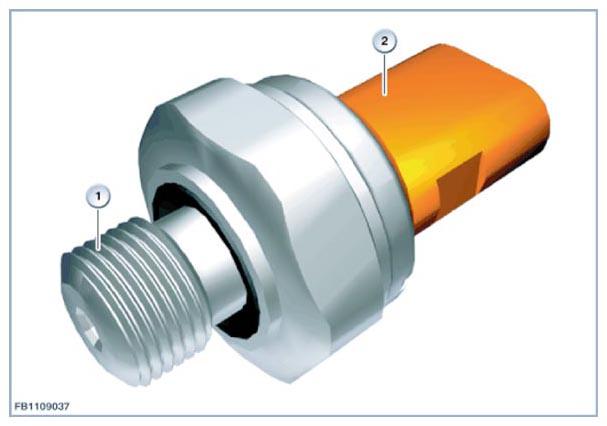

Fig 1: Identifying Engine-Oil Pressure Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Engine-oil pressure sensor
2	Three-pin plug connection

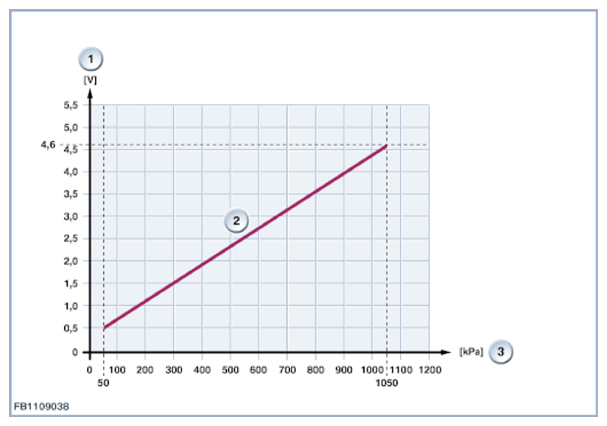

Fig 2: Oil Pressure Characteristic Curve

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Voltage
2	Characteristic curve oil pressure
3	Pressure
