Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

When the oil pressure switch is not activated, 12 Volts is applied to this signal line to the engine control system. When the switch is activated, 0 Volts is applied.

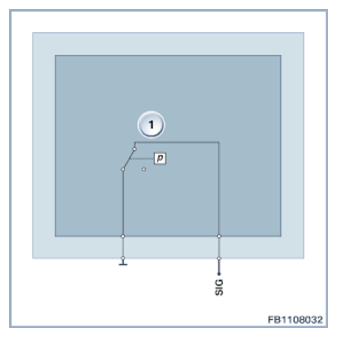

Fig 1: Oil Pressure Switch - Circuit Diagram
G09910050Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Oil pressure switch
PIN REFERENCE

Pin Explanation
SIG Signal, oil pressure switch
