Measurement procedure and target values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

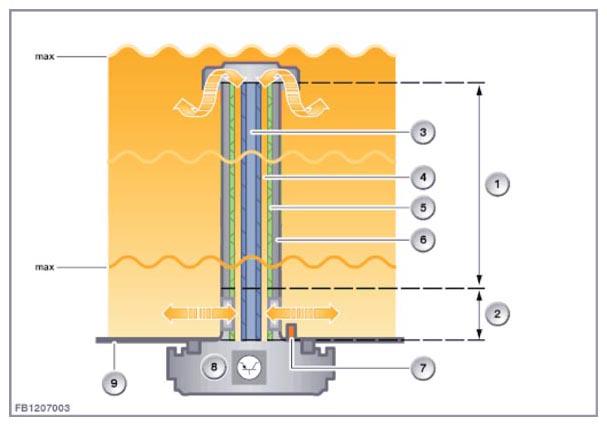

| Item | Explanation |
|---|---|
| 1 | Range for measurement of oil level |
| 2 | Range for measurement of permittivity |
| 3 | Inner capacitor |
| 4 | Dielectric (engine oil) |
| 5 | Outer capacitor |
| 6 | Housing |
| 7 | Temperature sensor |
| 8 | Evaluation electronics |
| 9 | Oil sump |
Please note the following specifications for the oil-level sensor:
| Variable | Value |
|---|---|
| Voltage range | 9 to 16 V |
| Oil level measurement range | 0 to 75 mm |
| Permittivity measurement range | 1 to 6 |
| Maximum conductivity in oil | 0.02 mS |
| Temperature range | -40 to 160 deg C |
