Display and operating concept
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The engine oil level check with the oil level sensor is coupled with a change to the display and operating concept.

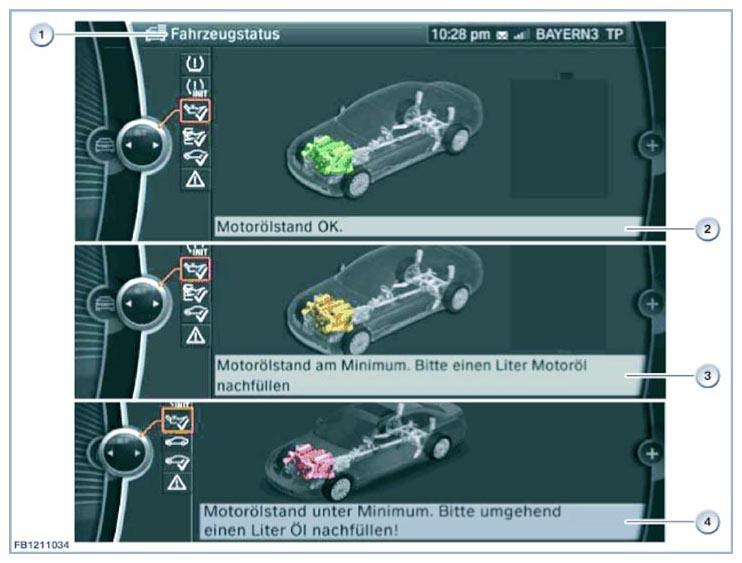

Qualitative measurement while driving
- Status display (oil level OK, oil level at or below minimum)
- Display available at all times
- Warning by means of Check Control message from oil level at minimum
| Item | Explanation |
|---|---|
| 1 | Vehicle status |
| 2 | Engine oil level OK |
| 3 | Engine oil level at maximum. Please top up with one liter of engine oil. |
| 4 | Engine oil level below minimum. Please top up immediately with one liter of engine oil. |

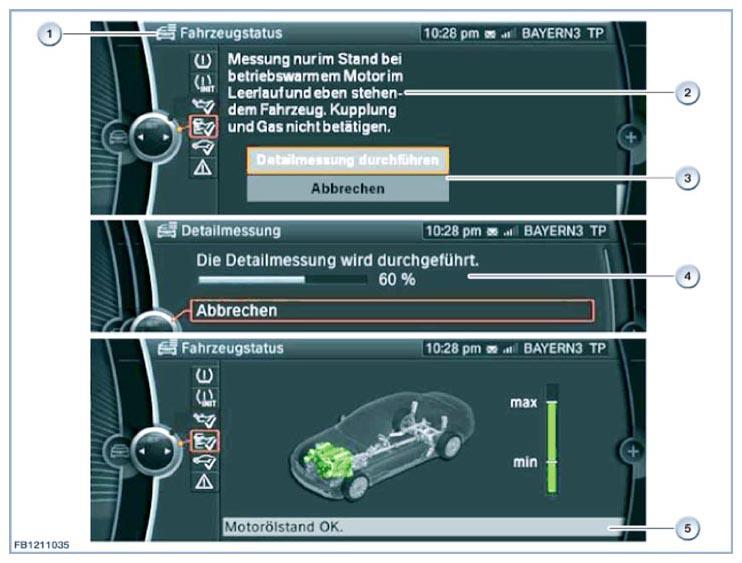

Quantitative measurement during vehicle standstill
- Driver must actively request measurement
- Measurement only possible under defined marginal conditions
- Time: approx. 1 minute
| Item | Explanation |
|---|---|
| 1 | Vehicle status |
| 2 | Measurement only when stationary with idle engine at operating temperature and when vehicle is on level ground. Do not operate the clutch or gas. |
| 3 | Conduct detailed measurement |
| 4 | Detailed measurement in progress. |
| 5 | Engine oil level OK. |
