61 31 470 Removing and installing/replacing relay/module
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove trim for instrument panel, bottom left, refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .
- Remove right glovebox with housing, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING (WITHOUT ACTIVE KNEE PROTECTION) or 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING (WITH ACTIVE KNEE PROTECTION) .

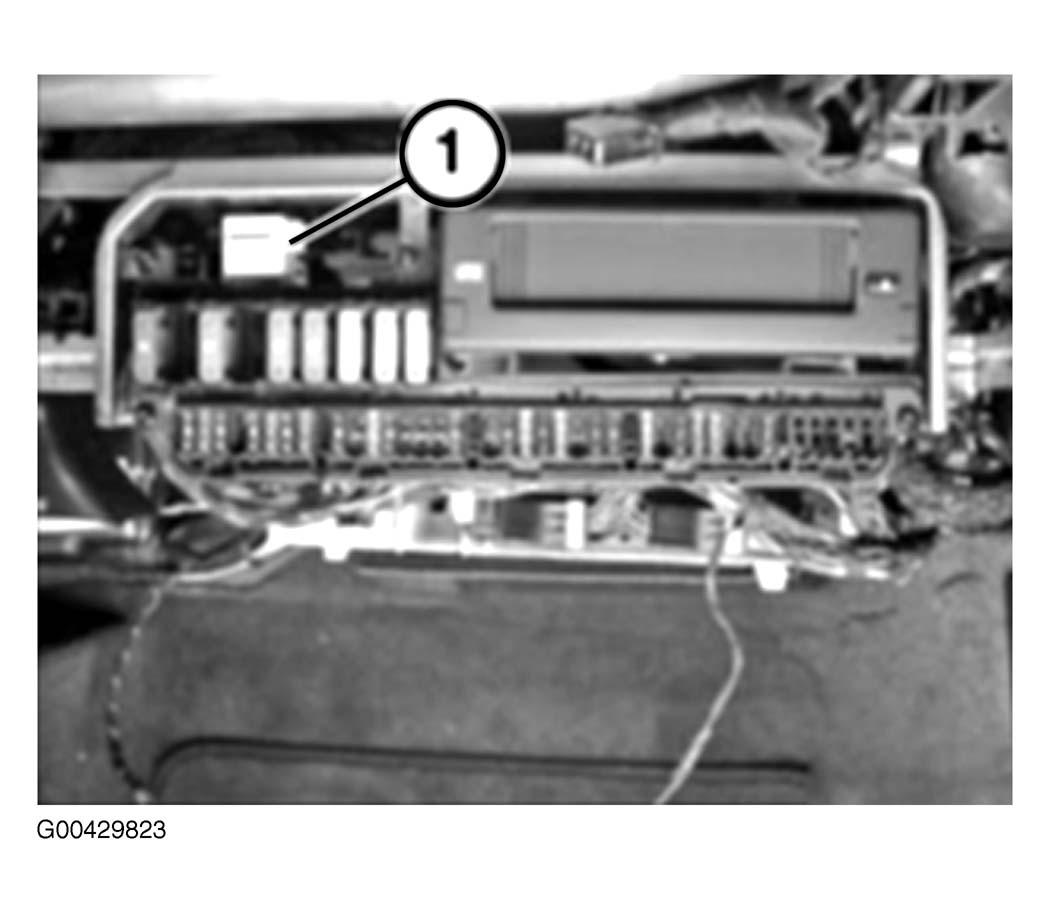

Detach relay (1).
