61 31 231 Removing and installing/replacing steering wheel electronics control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove airbag unit

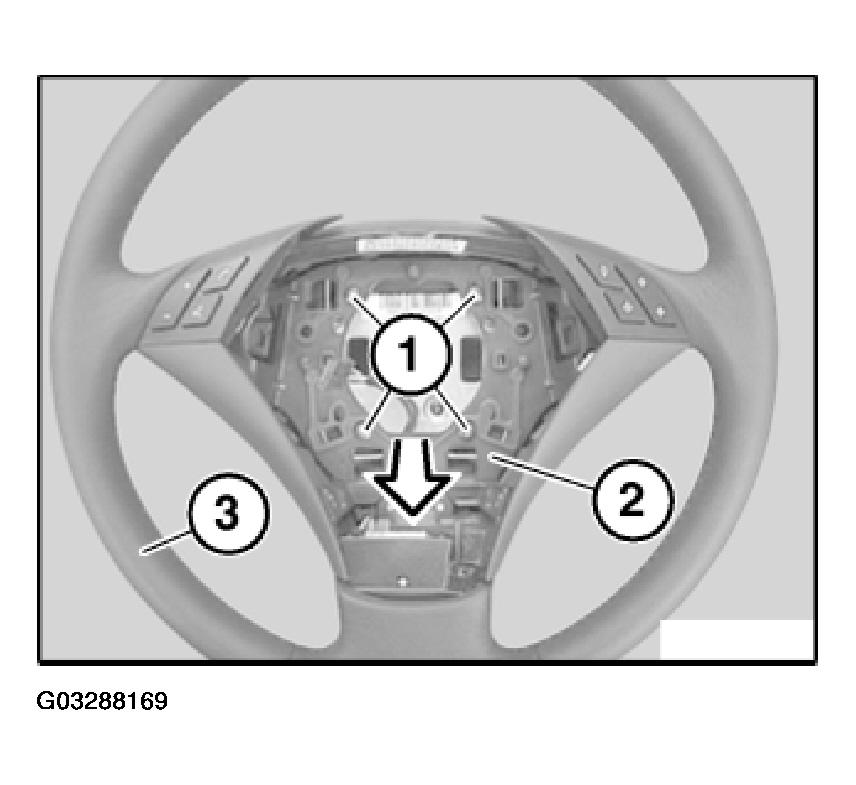

E60, E61: Version with standard steering wheel, illustrations show steering wheel removed:

Release screws (1).

Remove steering wheel retaining plate (2) upwards out of multifunction steering wheel (3).

Fig 1: Removing Steering Wheel Retaining Plate Upwards Out Of Multifunction Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

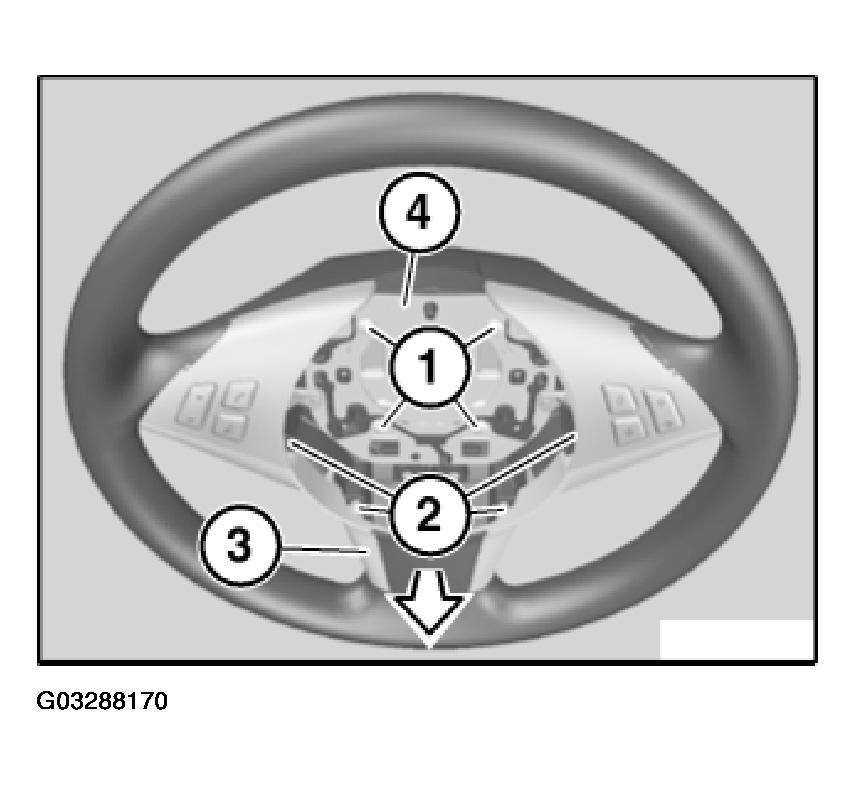

E60, E61: Version with sports steering wheel; E63, E64, illustrations show steering wheel removed:

Release screws (1).

IMPORTANT: Risk of breakage! Lever out complete steering wheel retaining plate (4) with decorative trim (3) all round, do not tilt!

Release complete steering wheel retaining plate (4) with decorative trim (3) in direction of arrow from fixtures (2).

Disconnect associated plug connections and remove complete steering wheel retaining plate (4) with decorative trim (3).

Fig 2: Releasing Steering Wheel Retaining Plate With Decorative Trim From Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure electrical leads are correctly routed.

All:

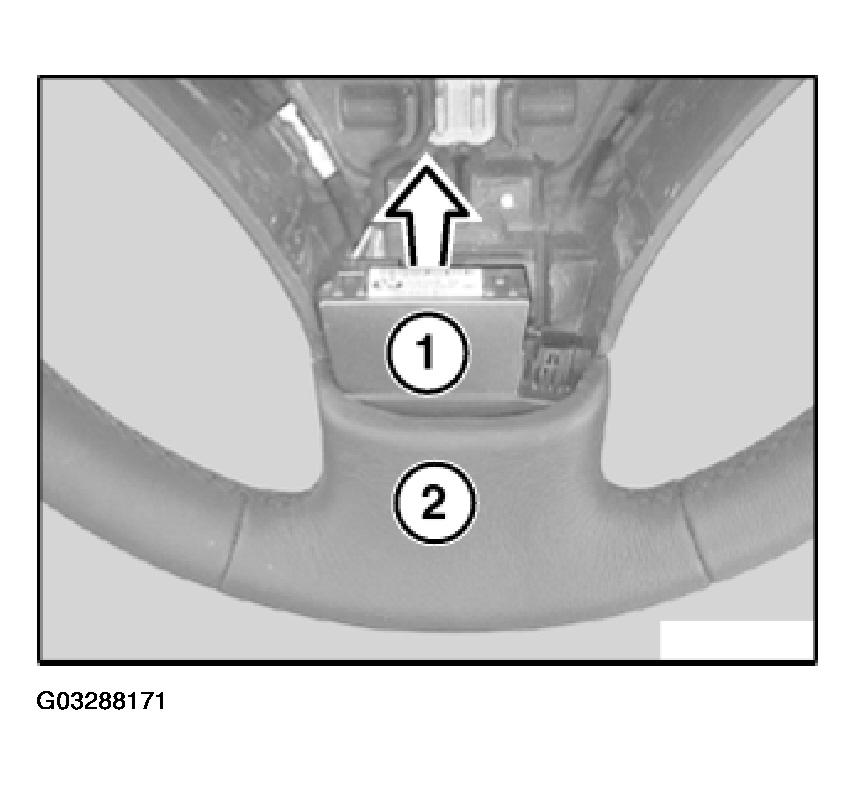

Pull steering wheel electronics control unit (1) in direction of arrow out of steering wheel (2).

Fig 3: Pulling Steering Wheel Electronics Control Unit Out Of Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

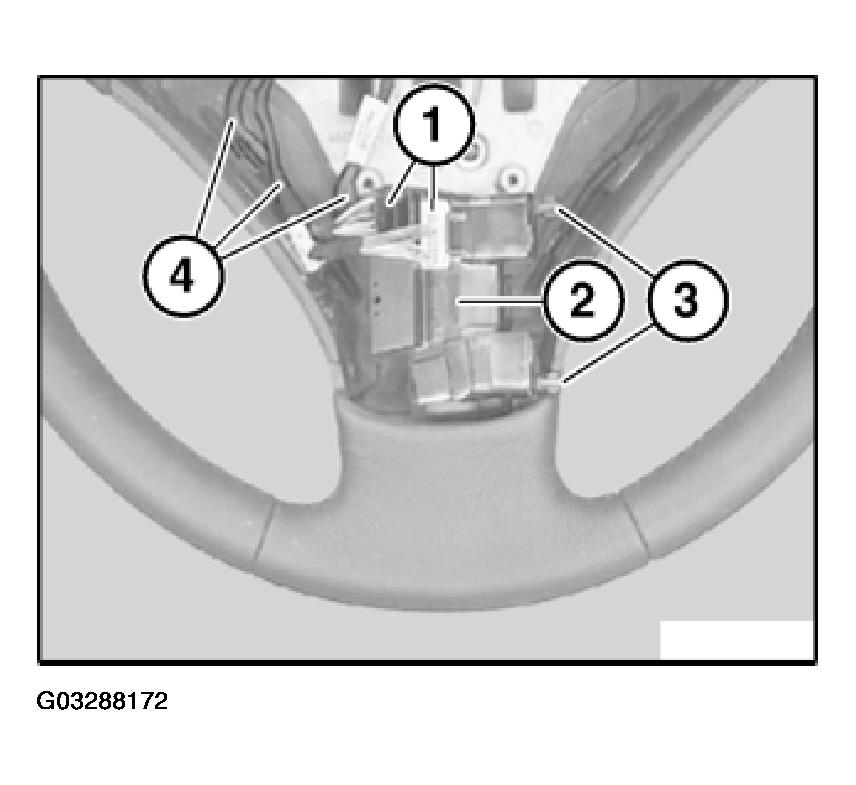

Unlock plug connections (1) and disconnect.

Remove steering wheel electronics control unit (2).

Installation:

Guide pins (3) of steering wheel electronics control unit (2) must be exactly seated in associated mountings.

Make sure electrical leads (4) are correctly routed.

Fig 4: Disconnecting Plug Connections And Removing Steering Wheel Electronics Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
