61 31 214 Removing and installing/replacing switch for Electronic Damper Control (M5/M6)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove finisher for preselector lever

Release screws (1). Remove switch for Electronic Damper Control (2) from trim for preselector lever (3).

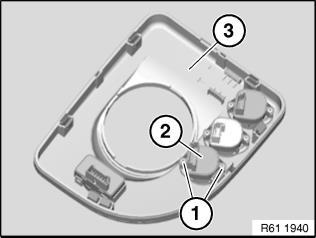

Fig 1: Remove Switch For Electronic Damper Control (2) From Trim For Preselector Lever

Courtesy of BMW OF NORTH AMERICA, INC.
