61 31 195 Removing and installing (replacing) front controller (up to 09/2008)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove knob for controller, refer to 61 31 192 REPLACING KNOB FOR CONTROLLER .
Remove center console, refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

Release screws (1).

Remove controller (2) in direction of arrow from storage compartment (3).

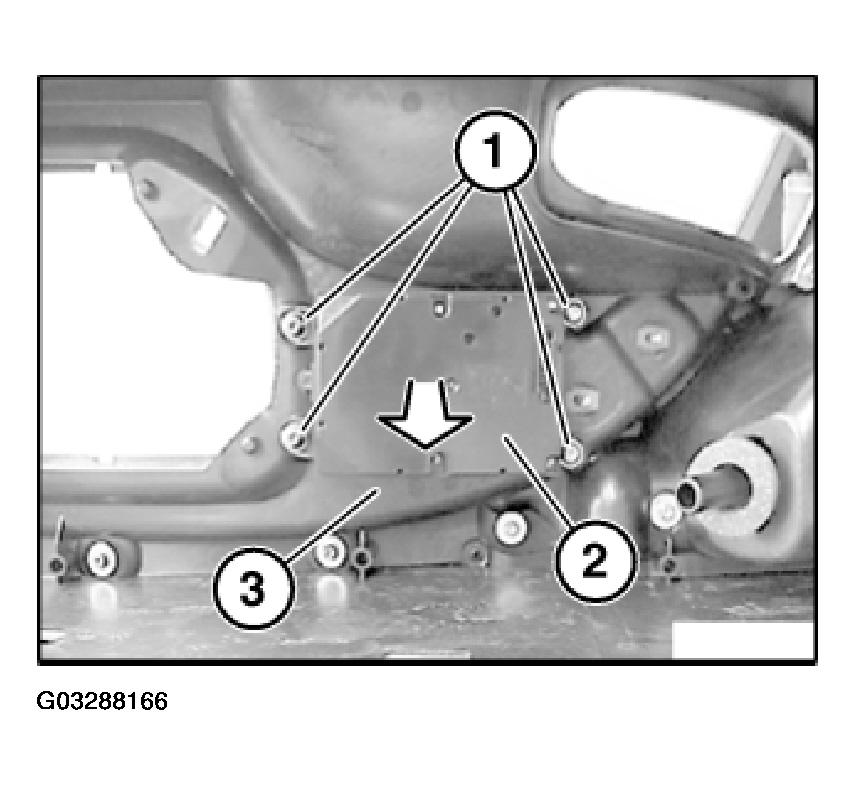

Fig 1: Removing Controller From Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
