61 31 108 Removing and installing/replacing power switch (M5/M6)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove finisher for preselector lever.

Release screws (1). Remove power switch (2) from trim for preselector lever (3).

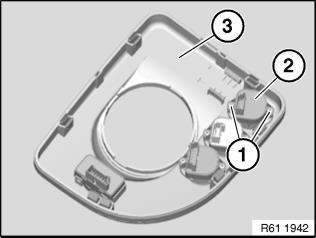

Fig 1: Remove Power Switch (2) From Trim For Preselector Lever (3)

Courtesy of BMW OF NORTH AMERICA, INC.
