61 31 023 Removing and installing/replacing Start/Stop switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

00 9 340

Attach special tool 00 9 340 as illustrated.

Unclip Start/Stop switch (1) with associated ribbon cable.

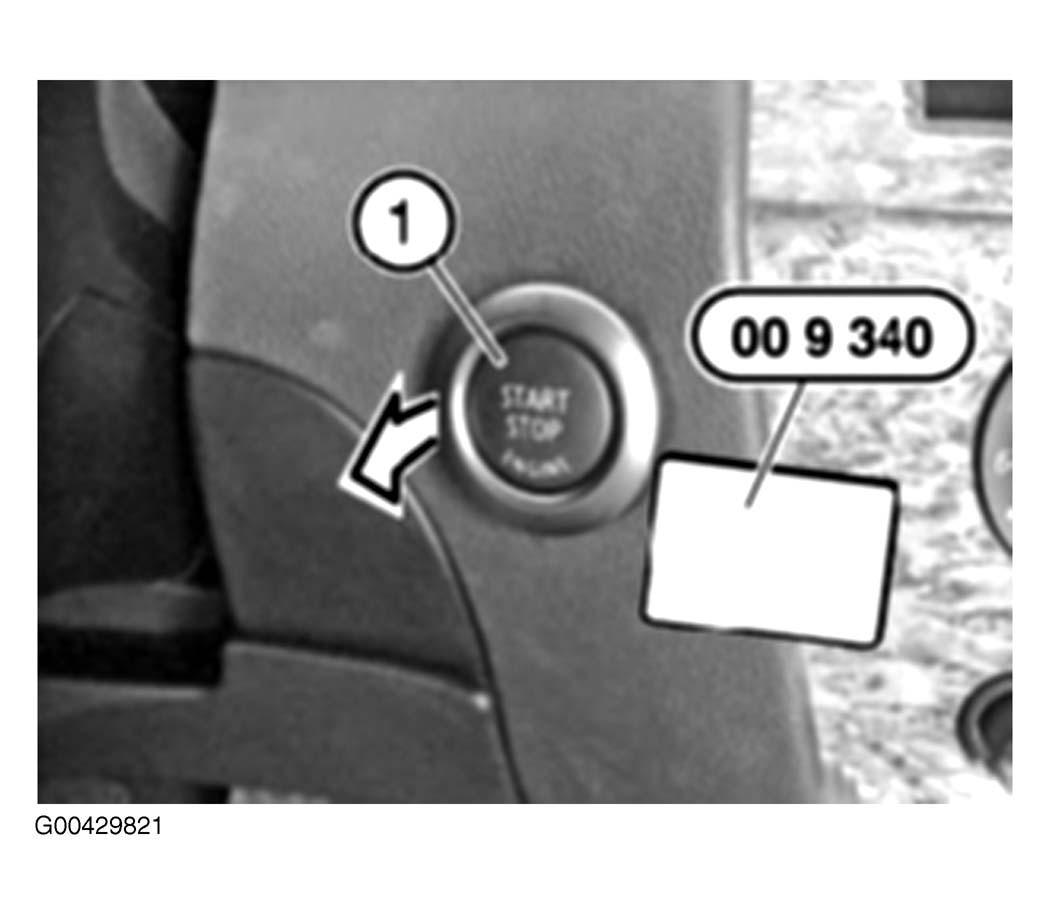

Fig 1: Identifying Start/Stop Switch (1)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carefully unlock and disconnect associated plug connection for ribbon cable. Replace the ribbon cable if damaged.

Remove Start/Stop switch (1).
