66 53 170 Removing and installing/replacing control unit for Top-/Rear-/Side- View Camera
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

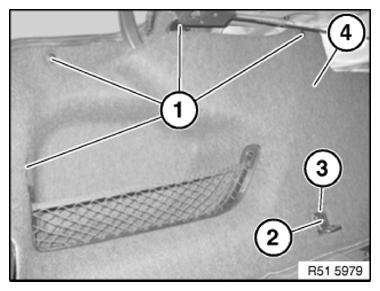

Lever out expanding rivets (1).
Release screw (2).
Remove lashing eye (3).
Carefully press luggage compartment wheel arch panel (4) to one side.
Installation note:
Make sure luggage compartment wheel arch panel (4) and rubber seal are correctly fitted.

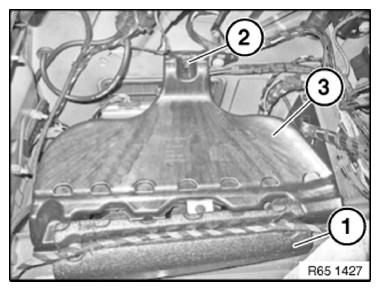

Pull off wiring harness guide (1) in an upward direction.
Lift out expanding rivet (2).
Remove wheel arch support (3) by lifting upwards.

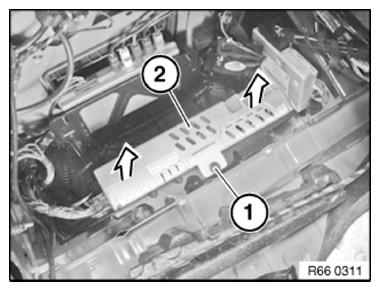

Release screw (1).
Remove amplifier (2) in direction of arrow.

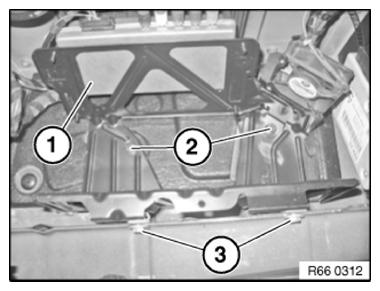

Release nuts (2) and screws (3).
Remove TRSV control unit (1) including holder.

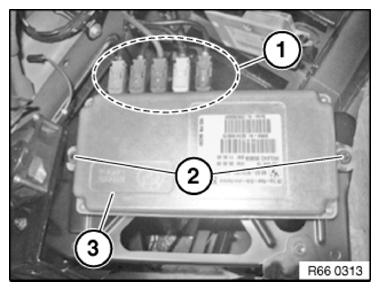

Unlock plug connections (1) and disconnect.
Replacement:
Unfasten screws (2).
Remove TRSV control unit (3) from holder.
Replacement:
- Carry out PROGRAMMING/ENCODING .
- CALIBRATE REVERSING CAMERA
