51 16... Instructions on correctly installing cupholder insert (vehicles with automatic transmission only)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Failure to comply with these instructions can result in scratches on the decorative trim of the cupholder.

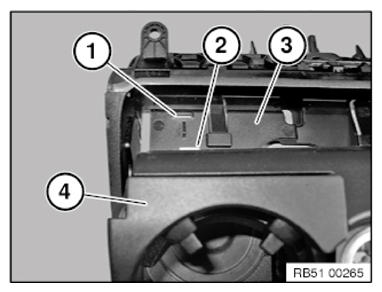

NOTE: It must be ensured that the left and right retaining tabs (2) of cupholder insert (4) are correctly engaged in the left and right securing eyes (1) of the cupholder housing (3).

Fig 1: Identifying Cupholder Housing And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

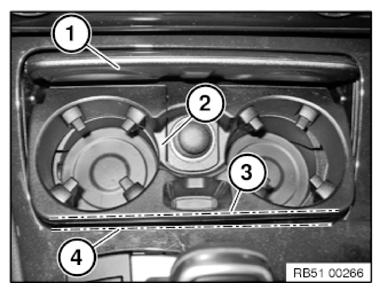

Press lid (1) forward all the way and insert cupholder insert (2) without applying force until edge of cupholder insert (3) is parallel to edge of cupholder housing (4).

In doing so, note cable routing of cigarette lighter.

Fig 2: Identifying Cupholder Housing And Lid

Courtesy of BMW OF NORTH AMERICA, INC.

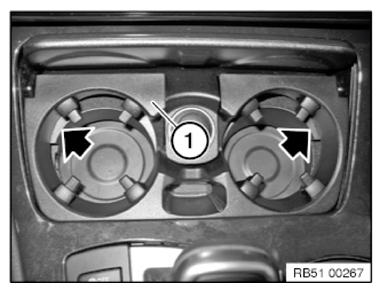

Press left and right sides of cupholder insert (1) down in a slanted direction (direction of arrow) until cupholder insert (1) can be heard to engage.

Fig 3: Locating Cupholder Insert

Courtesy of BMW OF NORTH AMERICA, INC.

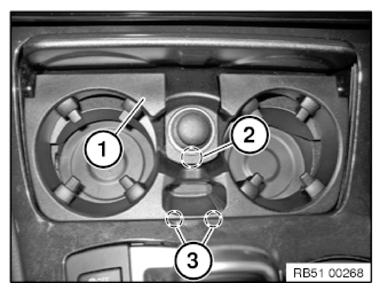

To lock the rear attachment points (3), press cupholder insert (1) down in marked area (2).

Cupholder insert (1) engages audibly.

Fig 4: Identifying Cupholder Insert Rear Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

To check:

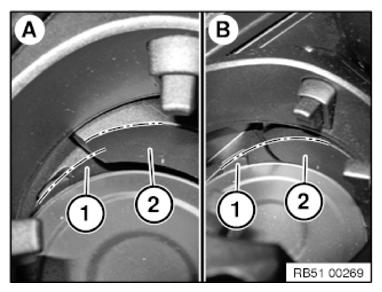

If the cupholder is correctly engaged, the edges of the cupholder insert (2) and cupholder housing (1) are aligned.

Graphic A = not OK

Graphic B = OK

Fig 5: Identifying Cupholder Insert And Housing Aligned Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Check that the cupholder lid opens and closes easily and smoothly.
