13 62 560 Removing and installing/replacing air-mass flow sensor (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out fault memory of DME control unit
Turn off ignition

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 8AZ .

Pull air-mass flow sensor (3) out of upper section of intake silencer housing.

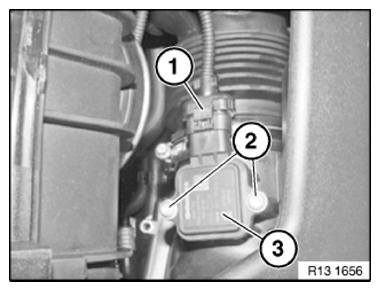

Fig 1: Identifying Air-Mass Flow Sensor, Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Delete fault memory.
