13 62 535 Replacing charging pressure sensor (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE SILENCER HOUSING .
Remove sound insulation on injectors.

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 5AZ .

Remove charge-air pressure sensor (3).

Installation note:

Check sealing ring of charge-air pressure sensor and replace if damaged.

Prior to installation, apply a thin coat of anti-friction agent to sealing ring of charge-air pressure sensor.

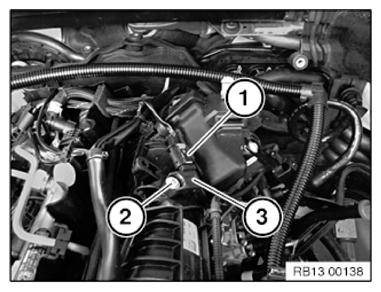

Fig 1: Identifying Charge-Air Pressure Sensor Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Delete fault memory.
