13 62 531 Replacing coolant temperature sensor (N57 D30 U/O/T 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 850

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove ACOUSTIC COVER .

Recycling:

Catch and dispose of escaping coolant.

Observe country-specific waste disposal regulations.

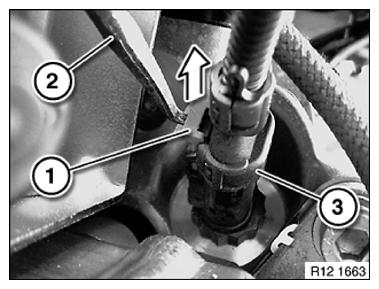

Release lock (1) with hook (2) and detach connector (3).

Fig 1: Detaching Coolant Temperature Sensor Connector

G09917828

Courtesy of BMW OF NORTH AMERICA, INC.

Remove coolant temperature sensor (3) with special tool 11 8 850 .

Tightening torque 13 62 2AZ .

Check O-rings. Replace faulty O-rings.

If necessary, top up coolant.

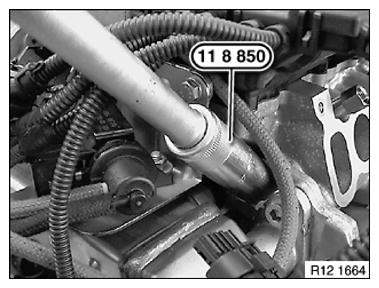

Fig 2: Removing Coolant Temperature Sensor

G09917829

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Delete fault memory.
