13 62 511 Removing and installing/replacing charge-air temperature sensor (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of the DME control unit, work through test plans if necessary.
Switch off ignition.

Release screw (1).

Partially loosen acoustic cover on the front (2).

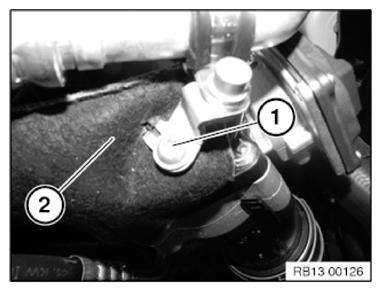

Fig 1: Identifying Acoustic Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Release screws (2) on throttle valve assembly.

Tightening torque 13 54 1AZ .

Release clamp (2).

Remove throttle body from the pressure pipe and thread out to the side until the connector can be reached at the charge-air temperature sensor.

Installation note:

Replace gasket at mixing tube for intake air.

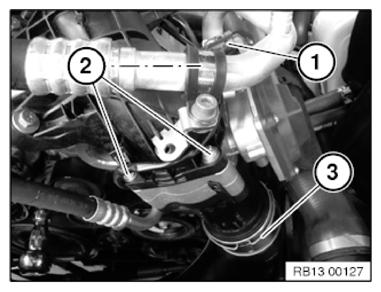

Fig 2: Identifying Throttle Valve Assembly, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) from charge-air temperature sensor (2) and pull off.

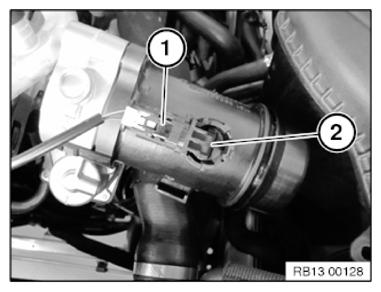

Fig 3: Identifying Intake Air Temperature Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The lock must be unlocked for removal of charge-air temperature sensor!
If the lock is not unlocked, the retaining lug on charge-air temperature sensor wears.
If the retaining lug is damaged, the charge-air temperature sensor can fall out of the pressure pipe.

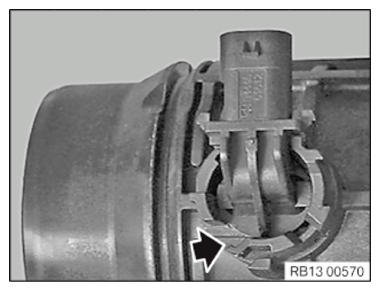

Fig 4: Locating Charge-Air Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Open the lock with a suitable tool (1).

Rotate charge-air temperature sensor (2) anticlockwise by 90° and pull out sensor straight.

Installation note:

Check sealing ring.

Replace damaged sealing ring.

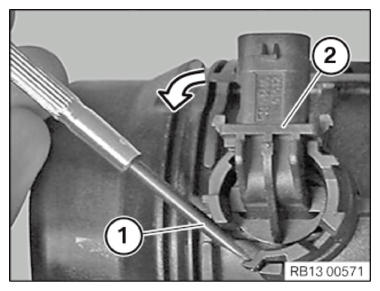

Fig 5: Rotating Charge-Air Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clear diagnostic fault entries from fault memory.

Reassemble the vehicle.
