13 61 501 Replacing control unit (DDE) (N57 D30 U/O/T 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Disconnect BATTERY EARTH LEAD .
FOLLOW INSTRUCTIONS FOR REMOVING AND INSTALLING CONTROL UNITS .

Replacement:

Carry out programming/encoding.
If no data can be read out from the previous control unit, carry out injection quantity compensation (description at end of instructions).

IMPORTANT: It is absolutely essential to read out the fault memory with the diagnosis system and produce a fault memory printout.

Switch off ignition.

Slacken nut (1).

Release screw (2).

Remove heat shield (3).

Fig 1: Identifying Heat Shield, Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 90 2AZ .

Remove electronics box cover (2).

Fig 2: Identifying Electronics Box Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock all connectors (1) from control unit and disconnect.

Unclip grommet hold-down device (2) and remove.

Detach rubber grommets (3) from electronics box. Place wiring harnesses to the side.

Installation note:

Make sure grommets are correctly fitted (watertightness).

Fig 3: Identifying Rubber Grommets, Grommet Hold-Down Device And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release outer locks on electronics box at front and rear.

Remove cover (1) from control unit.

Fig 4: Identifying Control Unit Cover

Courtesy of BMW OF NORTH AMERICA, INC.

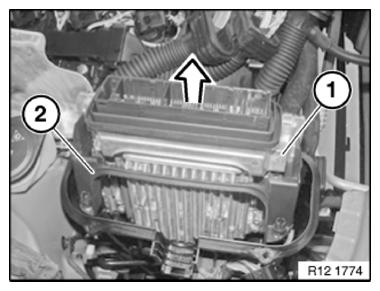

Lift out control unit (1).

Installation note:

Replacement:

Modify holder (2).

Installation note:

Replacement:

Note device identification number and encoding.

Fig 5: Lifting Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Injection quantity compensation:

If the DDE control unit has been replaced, it will also be necessary to carry out adjustment of the injectors!

The adjustment value (7-position letter/number code) is engraved on each injector.

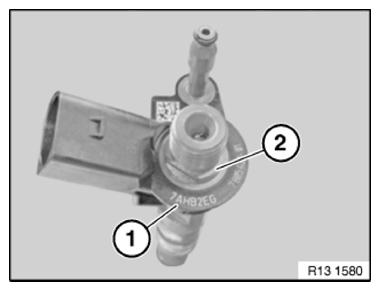

The adjustment value (1) (7-position letter code/number code) is engraved on each injector (2).

Enter the numbers/letters according to the installation location (cylinder) of the injectors.

Fig 6: Identifying Injection System Adjustment Value

Courtesy of BMW OF NORTH AMERICA, INC.

Select "Digital Diesel Electronics"
Select "Adjustment, injection quantity compensation"
Select "Test schedule"

The adjustment must be entered for each injector.

It is necessary to adjust the injectors to ensure their full functional capability.

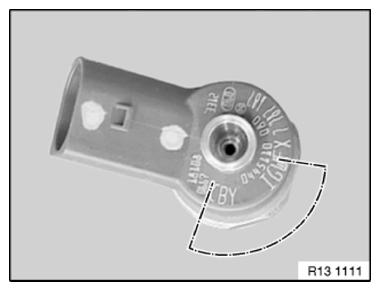

NOTE: Position of the adjustment value (1) at the injector (2).

Fig 7: Identifying Injector Adjustment Value

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.

Delete fault memory.
