51 44... Removing and installing front roofliner trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CEILING LIGHT (FRONT) .

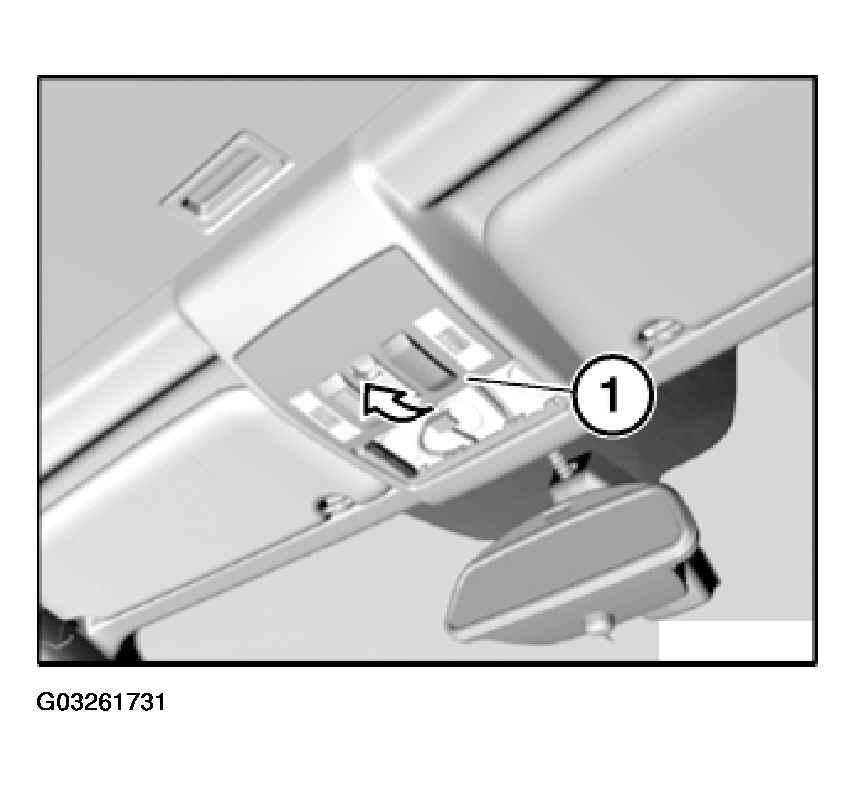

Unclip front roofliner trim (1) in direction of arrow.

Disconnect associated plug connections and remove front roofliner trim (1).

Fig 1: Disconnecting Associated Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Disconnecting the plug connection for the hands-free microphone or emergency SOS call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).

After fitting, read out fault memory and if necessary delete entries.
