32 13 650 Removing and installing/replacing EH converter for Servotronic

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Necessary preliminary tasks:

Remove reinforcement plate. See FRONT AXLE CARRIER .
If necessary, remove heat shield.

Disconnect plug connection (1).

Release screws (2).

Remove EH converter (3).

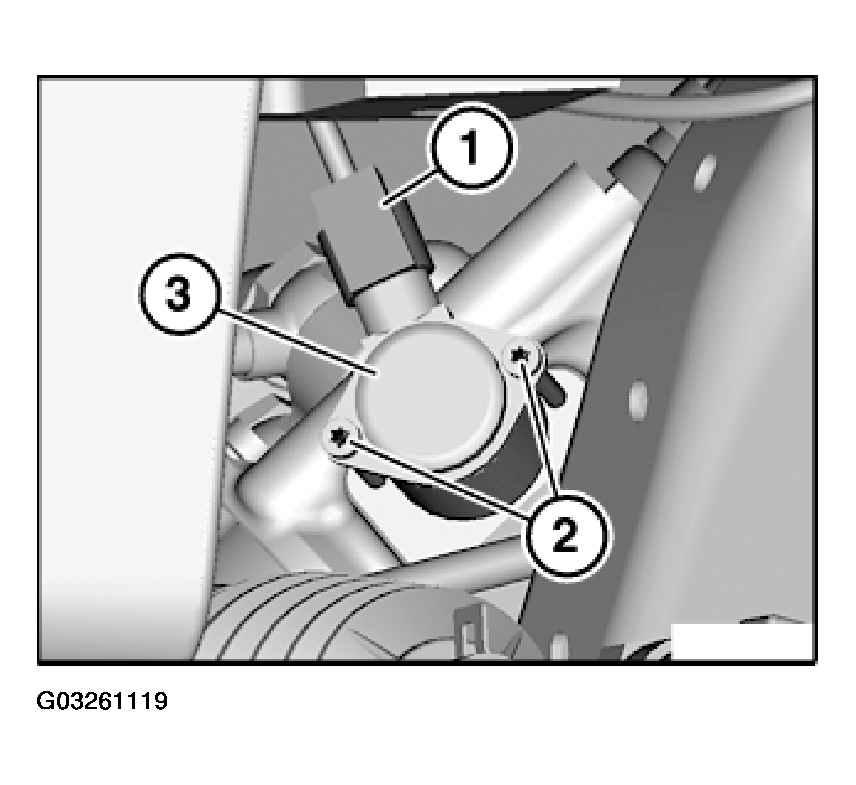

Fig 1: Disconnecting Plug Connection, Unfastening Screws & Removing EH Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean side return orifice with compressed air.

Align EH converter (3) to opening in power steering gear, press by hand into power steering gear up to stop, insert screws (2) and tighten down.

Tightening torque, see 32 13 12AZ in WHEEL & TIRES - TIGHTENING TORQUES

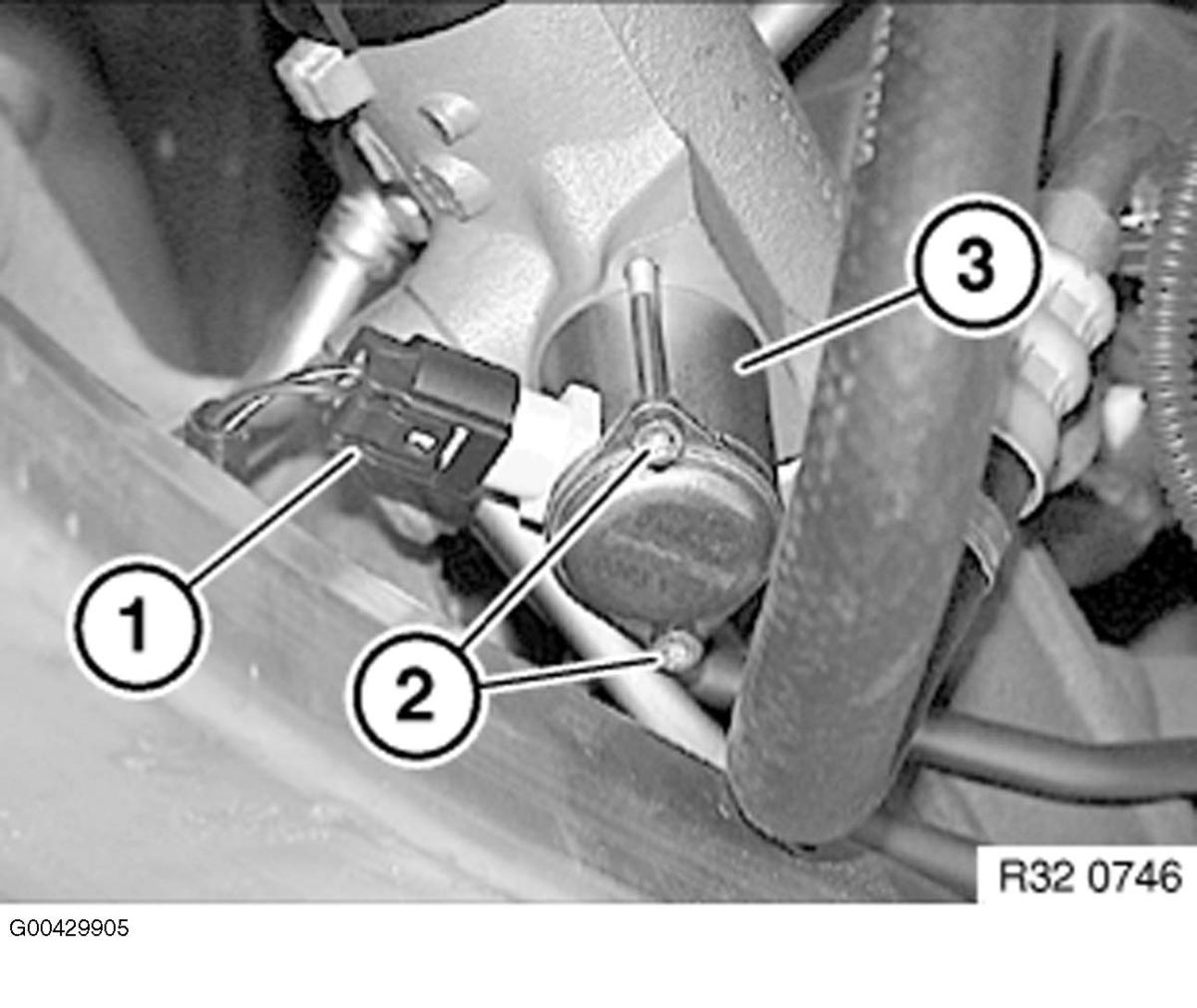

Fig 2: Removing Servotronic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation

Fill and bleed hydraulic system .

On version with Dynamic Drive: if necessary, carry out initial Dynamic Drive operation. See INITIALIZING DYNAMIC DRIVE .
