32 31 010 Removing and installing/replacing front section of steering column trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach front section of trim.

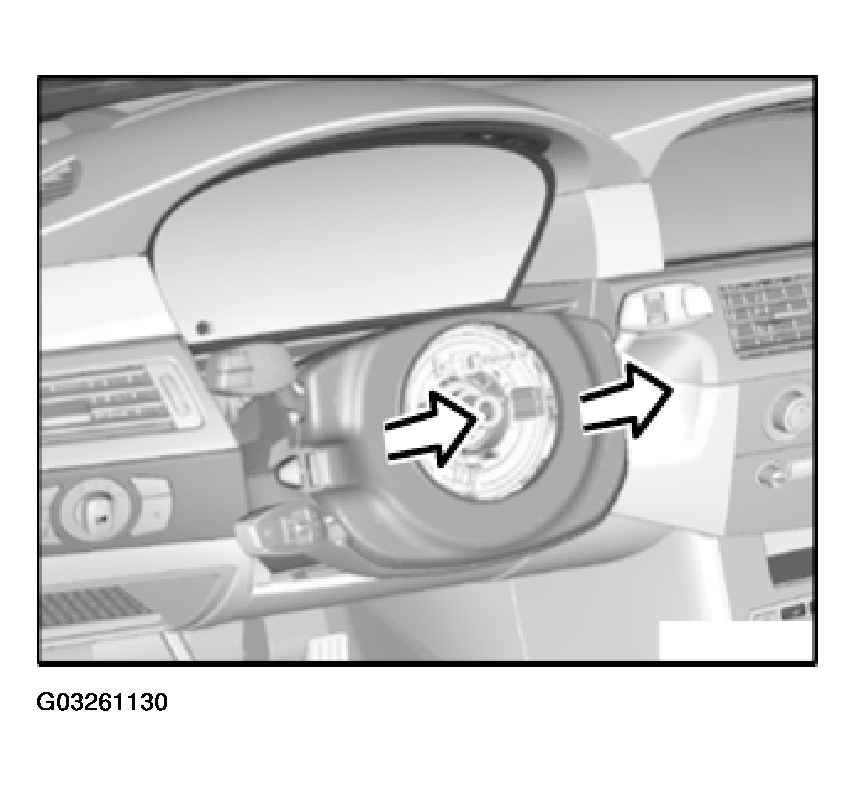

Fig 1: Detaching Front Section Of Trim
G03261130Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (2) must engage in hooks (1).

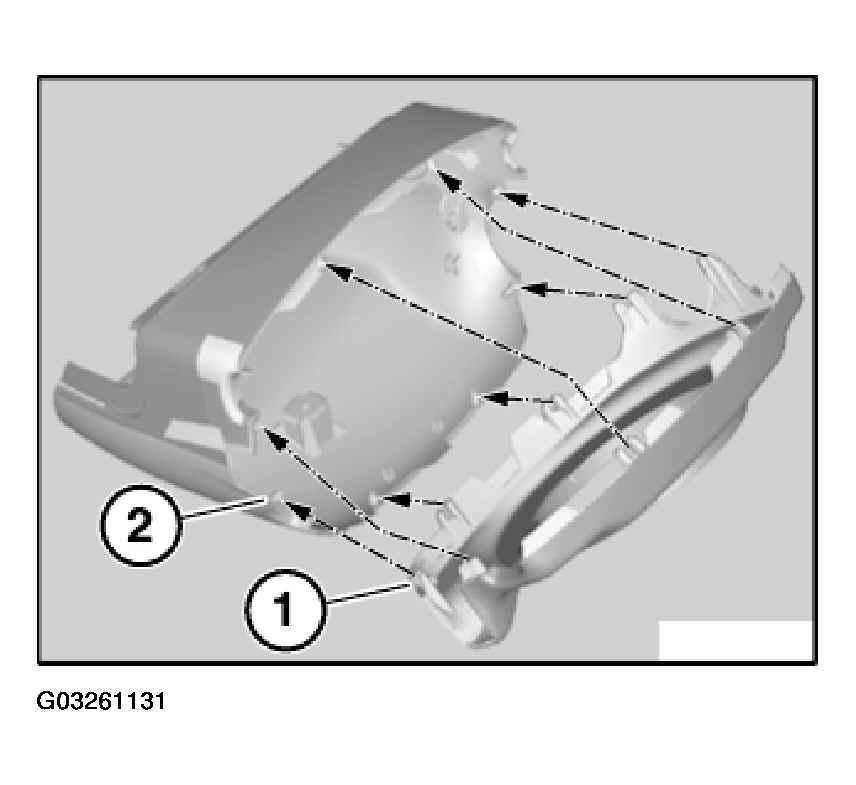

Fig 2: Identifying Lock Engage In Hooks
G03261131Courtesy of BMW OF NORTH AMERICA, INC.
