61 31 342 Removing and installing/replacing the gear selector switch (GWS): Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove GEAR SELECTOR SWITCH COVER .

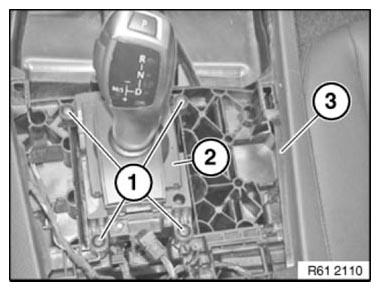

Release screws (1).
Tightening torque 61 31 1AZ .
Remove gear selector switch (2) from center console (3) and unlock and disconnect plug connection underneath.
Installation note:
Align gear selector switch (2) centrally.
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
Replacement:
NOTE:
A new connector with deviating pin assignment will be installed in the following vehicles.
- F25 from 03/2011
- F01, F02, F03, F04, F07 from 09/2011
- F10, F11, F12, F13, F18 from 03/2012
On the above-mentioned vehicles which were produced before the relevant data the wiring harness must if necessary be reconnected from the previous 8-pin connector to a new 10-pin connector (BMW part number 9 132 577) with special tool 61 0 313 (release tool).
PIN ASSIGNMENT
| Eight-pin connector: current pin | Ten-pin connector: new pin |
|---|---|
| 1 | 10 |
| 2 | 7 |
| 3 | 3 |
| 4 | 4 |
| 5 | 8 |
| 6 | 5 |
| 7 | 6 |
