61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL, LEFT

Release screw (2).

Tightening torque 51 41 2AZ .

Press power window switch (1) upwards in direction of arrow and remove.

Fig 1: Pressing Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Hook journals (1) into position (4). Lock retaining lugs (2) in bushes (3).

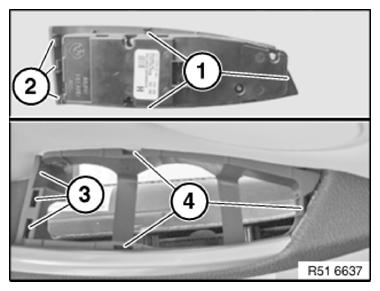

Fig 2: Identifying Power Window Switch, Hook Journals, Retaining Lugs And Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
