61 13 050 Removing and installing/replacing power distribution box in passenger compartment
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS
for handling vehicle battery.
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
- Detach both battery cables for negative terminal in F03
- Remove RIGHT GLOVE BOX WITH HOUSING

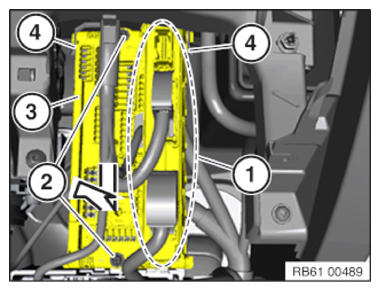

Disconnect plug connection (1) from power distribution box in passenger compartment (3) and junction box electronics.
Unfasten screws (2).
Tightening torque 61 14 1AZ
Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.
UNLOCK AND DISCONNECT plug connections behind.
Replacement:
- Modify JUNCTION BOX ELECTRONICS
- Modify fuses
