61 35 196 Removing and installing (replacing) control unit for automatic operation of tailgate system

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

NOTE: From 09/2010, the control unit is installed with a different placement of connector chambers:

control unit to 09/2010
control unit from 09/2010

Replacement:

Control unit (2) is installed as shown in vehicles with a production date up to 09/2010.

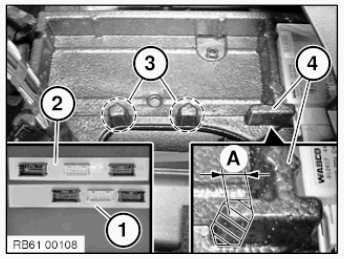

Fig 1: Identifying Control Unit Connector Ports And Styrofoam Projection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Pull out control unit for automatic tailgate activation (2) in direction of arrow.

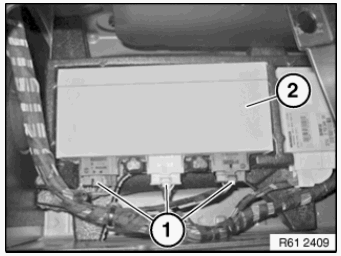

Fig 2: Identifying Control Unit And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
