84 10 810 Removing and installing (replacing) Telematic Communication Box: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrical damage (ESD PROTECTION) .

Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL on left.
For F10: Partially remove luggage compartment wheel arch trim on left

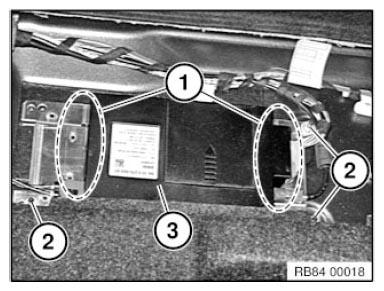

Unscrew nuts (1).

Tightening torque: 6 Nm

Release screw (2).

Tightening torque: 6 Nm

Remove holder and Telematic Communication Box (3) in direction of arrow.

Fig 1: Removing Holder And Telematic Communication Box

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar

Unlock and disconnect all plug connections in area (1).

Release all nuts (2).

Tightening torque: 3.3 Nm

Remove Telematic Communication Box (3) from holder.

Fig 2: Removing Telematic Communication Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Note color coding of plug connection.
