32 13 650 Removing and installing/replacing EH converter for Servotronic: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION
RELEASE bottom of steering shaft at steering box

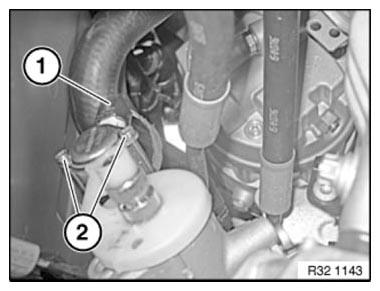

Fig 1: Identifying EH Converter Plug Connection And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Remove EH converter.

Installation note:

Clean side return orifice with compressed air.

Align EH converter to opening in hydraulic steering gear, press by hand into hydraulic steering gear up to stop, insert screws (2) and tighten down.

Tightening torque 32 00 2AZ .
