32 13 060 Removing and installing hydraulic steering gear: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove FRONT UNDERBODY PROTECTION
- Remove COVER FOR STEERING ASSEMBLIES on left and right
- Remove anti-roll bar from front axle support. See FRONT ANTI-ROLL BAR or FRONT ACTIVE ANTI-ROLL BAR .
- Remove TRACK ROD END ON BOTH SIDES FROM SWIVEL BEARING
- Remove TRACK ROD END AT BOTH ENDS OF TRACK ROD
Release screw (1) from engine compartment.
Tightening torque 32 31 2AZ .
Installation note:
Replace screw

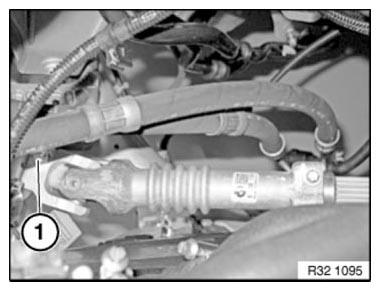

Detach steering shaft lower section.
Release screw (1).
Tightening torque 32 41 5AZ .

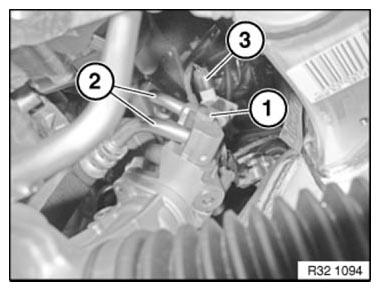

Remove lines (2) from hydraulic steering gear.
Disconnect plug connection (3) and release cable strap.
Installation note:
Replace sealing rings.
IMPORTANT:

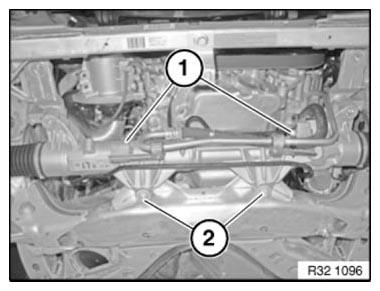

To avoid the need for axle/wheel alignment, mark position of steering box (1) to front axle support (2).
To do so, draw a wide white stripe on the front bolting points (left and right) and apply a thin black marking (3) to this stripe.
To do so, draw a wide white stripe on the front bolting points (left and right) and apply a thin black marking (3) to this stripe.
Release screws (1) and lay lines to one side.
Tightening torque 32 41 7AZ .
Unfasten screws (2).
Installation note:
Replace screws.
Tightening torque 32 00 1AZ .
Remove hydraulic steering gear in downward direction.
