32 41... Replacing level switch for Dynamic Drive fluid reservoir N74

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE DUCT for air filter housing

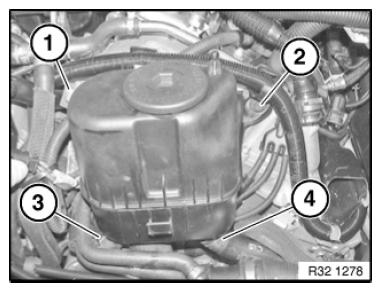

Fig 1: Identifying Fluid Reservoir Screws Removing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2).

Tightening torque 32 41 21AZ .

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

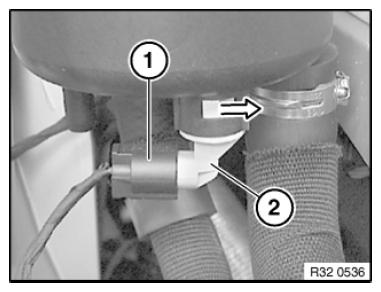

Fig 2: Identifying Plug Connection And Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.
