31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

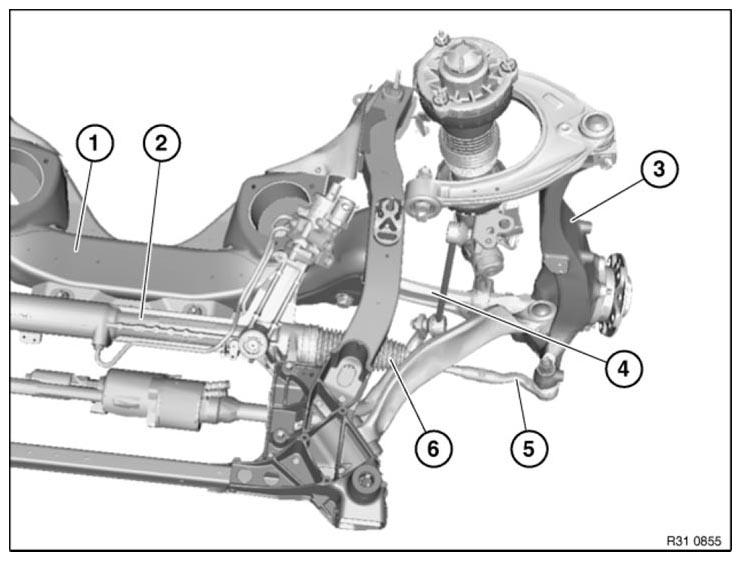

Illustrations show F01/F02:
A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
- Release of following screw/bolt connections:
- Steering gear to front axle support (with identification no alignment check required)
- Lower wishbone to front axle support
- Track rod end to track rod
- Replacement of following parts:
- = Front axle support
- = Steering gear
- = Swivel bearing
- = Lower wishbone
- = Track rod end
- = Track rod
