31 12 002 Removing and installing/replacing top left wishbone: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wishbones with + or - marking (see graphic) are camber correction arms:
- Underdimension variant
+ Overdimension variant
These camber correction arms are used to correct the camber values by 30 minutes.
To be used only if the tolerance values are exceeded or undershot!
An unmarked wishbone is a standard part.

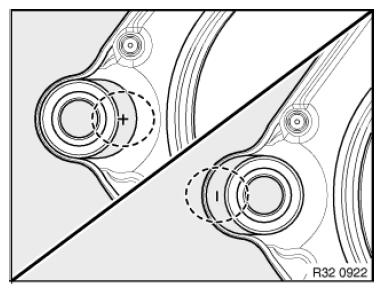

Fig 1: Identifying Wishbones With Underdimension And Overdimsion Variant

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove FRONT WHEEL .
If necessary, remove OIL RESERVOIR FOR HYDRAULIC STEERING FROM THE LEFT WHEEL ARCH .

N63 (with water-cooled DME control unit):

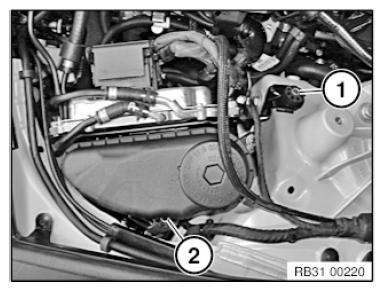

Unscrew screws (1) and (2).

Lay DME control unit with holder and oil reservoir to one side.

Fig 2: Identifying DME Control Unit Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

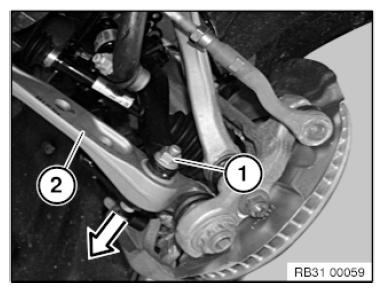

Release nut (1) on wishbone (2) and remove.

Tightening torque 31 12 5AZ.

Installation note:

Replace nut.

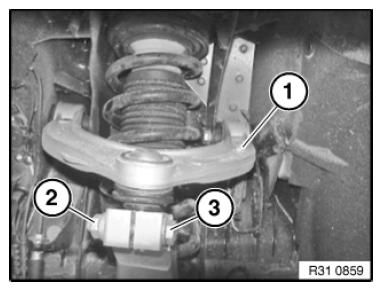

Fig 3: Identifying Wishbone And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Secure swivel bearing (1) 33 5 206 with tensioning belt to spring (2).

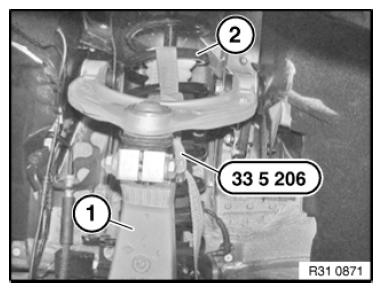

Fig 4: Securing Swivel Bearing (33 5 206) With Tensioning Belt To Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove ride height sensor jointed rod from wishbone.

Installation note:

Replace self-locking nut.

Tightening torque 37 14 5AZ.

Release nut (2) and remove bolt (3).

Tightening torque 31 12 6AZ.

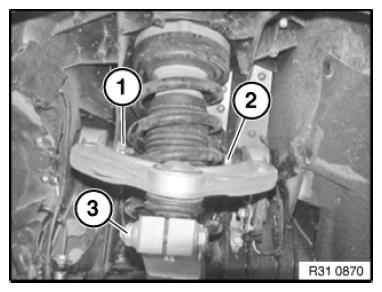

Fig 5: Identifying Ride Height Sensor Jointed Rod Mounting Nut And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep wishbone to swivel bearing connection clean and free from oil and grease.

Note direction of insertion of screw.

Screw must rest correctly in groove of ball stud!

Replace nut.

Tighten wishbone as far as it will go in relation to swivel bearing.

Release nut (1) and remove screw.

Tightening torque 31 12 7AZ.

Release spring strut from wishbone (2).

Installation note:

Note direction of insertion of screw.

Replace screw and nut.

Tighten in NORMAL POSITION .

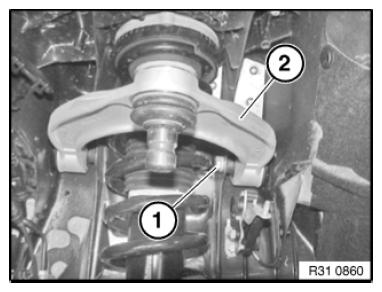

Fig 6: Removing Spring Strut From Wishbone

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 31 12 5AZ.

Pull spring strut outwards and remove screw (1).

Remove wishbone (2).

Installation note:

Replace nut.

Fig 7: Identifying Wishbone And Spring Strut Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Risk of damage!

Observe assembly sequence.

Upper wishbone must be screwed in normal position! (Adjustment of normal position, see below).

Insert bolt (2) (do not tighten down)
Adjust upper wishbone to body to dimension (A).
Tighten screw (2).
Tightening torque 31 12 5AZ.
Tighten screw (1).
Tightening torque 31 12 5AZ.
Tighten spring strut/wishbone (lower) screw connection.
Tightening torque 31 12 7AZ.
Tighten wishbone/swivel bearing (3) screw connection.
Tightening torque 31 12 6AZ.

Fig 8: Identifying Wishbone/Swivel Bearing, Bolt And Screw
Courtesy of BMW OF NORTH AMERICA, INC.
