32 13 060 Removing and installing hydraulic steering gear: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir
Remove front anti-roll bar. See FRONT ANTI-ROLL BAR or FRONT ACTIVE ANTI-ROLL BAR .
Lower FRONT AXLE SUPPORT
Remove TRACK ROD END ON BOTH SIDES FROM SWIVEL BEARING

Release screw (1).

Disconnect lines (2) and (3) from power steering gear.

Installation note:

Replace sealing rings.

Tightening torque 32 41 5AZ .

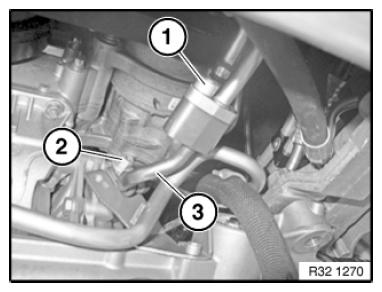

Fig 1: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

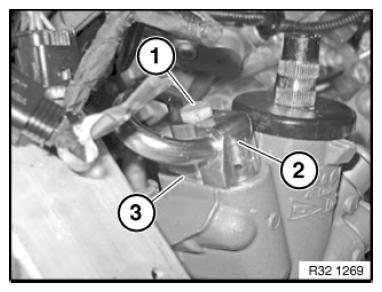

Fig 2: Identifying Block Screw Connection, Line Holder And Line

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release block screw connection (1).

Release line holder (2) and remove line (3) to the steering gear.

Tightening torque 32 41 11AZ .

Release screw connection (1) if necessary (only on vehicles with Dynamic Drive)

Tightening torque, 37 13 5AZ.

Release line holders (2) and (4).

Tightening torque 32 41 7AZ .

Remove bracket (3) from front axle carrier.

Tightening torque 32 41 12AZ .

Remove hydraulic line!

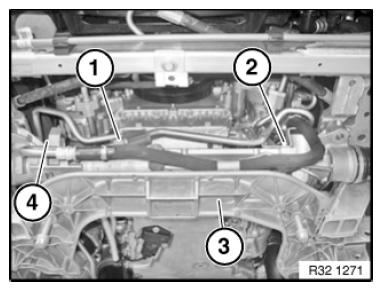

Fig 3: Identifying Line Holders, Bracket And Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from EH converter.

IMPORTANT: Risk of damage!
When removing the steering gear, pay attention to female connector.

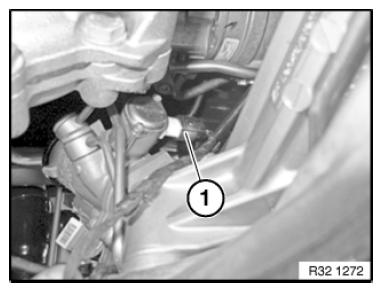

Fig 4: Identifying EH Converter Plug

Courtesy of BMW OF NORTH AMERICA, INC.

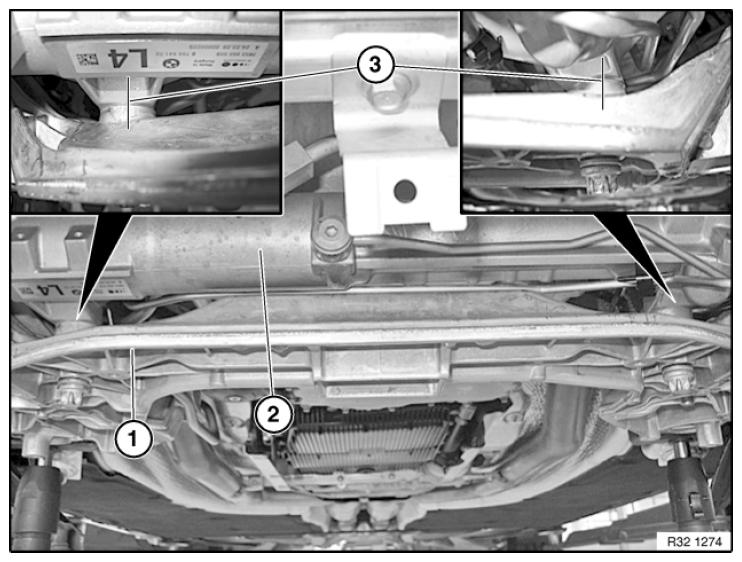

Fig 5: Identifying Steering Gear, Front Axle Support And Thin Black Marking On Stripe

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid the need for axle/wheel alignment, mark position of steering gear (2) to front axle support (1).
To do so, draw a wide white stripe on the front bolting points (left and right) and apply a thin black marking (3) to this stripe.

Release screws (1).

Carefully push line (2) up.

Remove hydraulic steering gear in downward direction.

Installation note:

Replace bolts.

Tightening torque 32 00 1AZ .

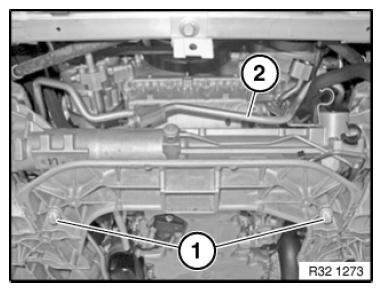

Fig 6: Identifying Hydraulic Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
