32 31 003 Removing and installing/replacing upper section of steering column trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

00 9 317

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column shroud (1) at side with special tool 00 9 317 .

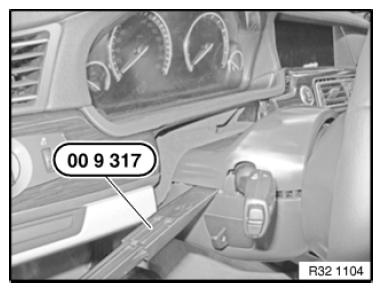

Fig 1: Removing Steering Column Shroud Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Pull steering column trim (1) towards front.

Unclip steering column gap cover (1) from upper section of steering column trim (2).

Remove upper section of steering column trim (2).

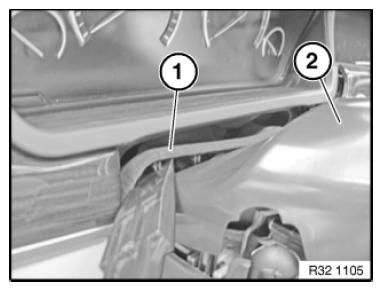

Fig 2: Identifying Steering Column Gap Cover And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
