32 00 601 Adjusting toe-in on front axle: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

Version with active steering:

Align steering wheel
Set total steering angle by means of the service function "CARRY OUT INITIAL OPERATION/ADJUSTMENT FOR ACTIVE STEERING " to "zero".
If necessary, secure with steering wheel arrester

Version without active steering:

Remove front UNDERBODY PROTECTION .

Move steering into straight-ahead driving position by means of markings on cap (1) and steering box (2).

Align steering wheel and secure with steering wheel arrester.

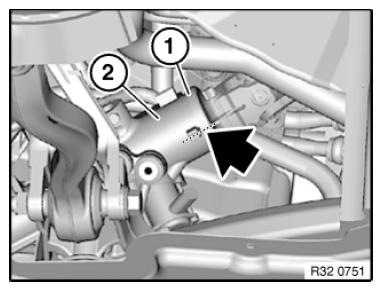

Fig 1: Identifying Steering Box And Markings On Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on track rod.

Slacken clamping nut (2), gripping track rod end (1) in the process.

Remove clamp (4).

Turn track rod (3) to adjust toe-in to setpoint value.

Version with active steering: Check total steering angle; if necessary, set to "zero".

Check toe values, repeat adjustment if necessary.

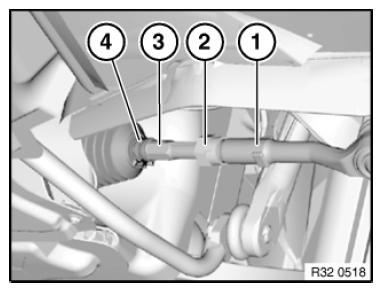

Fig 2: Identifying Track Rod, Track Rod End, Clamp And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down clamping nut (2).

Tightening torque 32 21 2AZ .

Fit clamp (4).
