31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

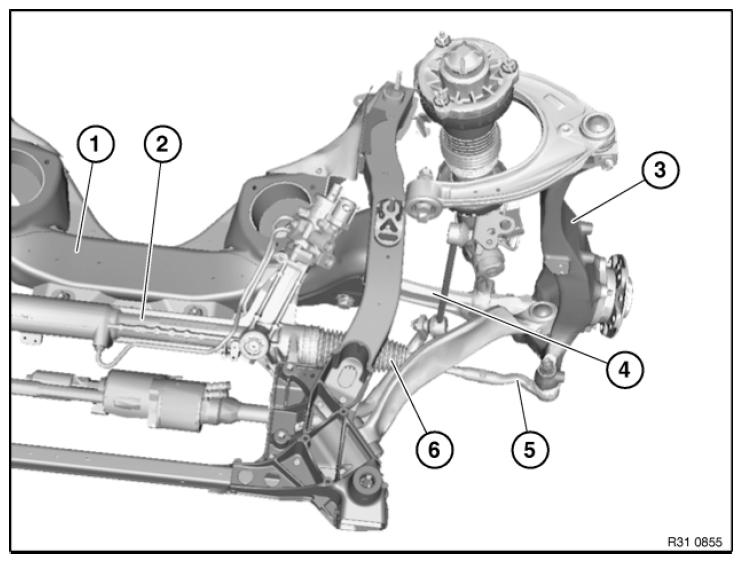

Fig 1: Identifying Front Axle And Steering Components

Courtesy of BMW OF NORTH AMERICA, INC.

Illustrations show F01/F02:

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release of following screw/bolt connections:
- Steering gear to front axle support (with identification no alignment check required, see REMOVING AND INSTALLING STEERING GEAR )
- Lower wishbone to front axle support
- Track rod end to track rod
Replacement of following parts:
1. Front axle support
2. Steering gear
3. Swivel bearing
4. Lower wishbone
5. Track rod end
6. Track rod
