61 11... Remove and install / replace the HSD cable for the Top View camera in the exterior mirror, left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: HSD cable length: 380 mm

Necessary preliminary tasks:

REMOVE PROTECTIVE CAP ON LEFT OR RIGHT EXTERIOR MIRROR .

REMOVE EXTERIOR MIRROR FROM LEFT OR RIGHT FRONT DOOR .

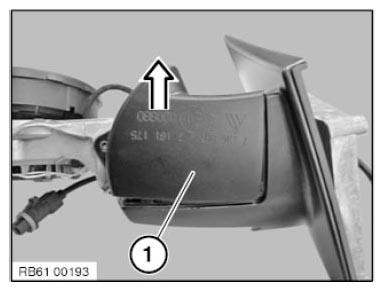

Lever out the cover (1) in direction of arrow.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

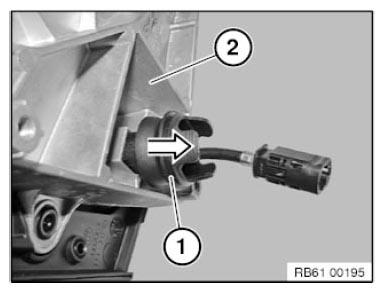

Pull the rubber grommet including internal connector (1) out of the mirror housing (2) in direction of arrow.

Fig 2: Pulling Rubber Grommet From Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully with a suitable tool. Pull the connector housing (4) off the HSD cable (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

Fig 3: Pulling HSD Cable Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

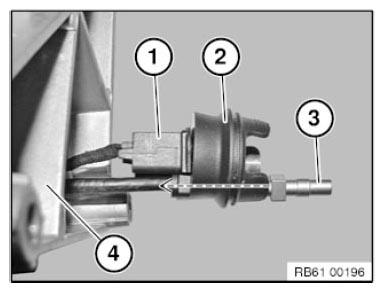

Feed the HSD cable (3) out of the rubber grommet (2).

NOTE: Leave the rubber grommet (2) on the connector (1).

Feed the HSD cable (3) out of the mirror housing (4).

Fig 4: Installing HSD Cable Into Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

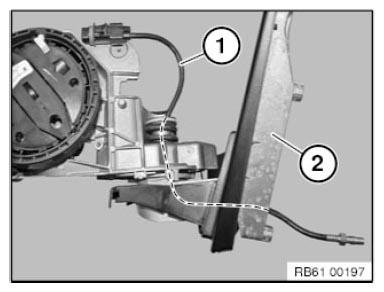

The HSD cable (1) is routed in the mirror housing (2) as shown.
