13 62 592 Removing and installing/replacing pressure sensor on right intercooler (S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Read out fault memory of DME control unit.
Turn off ignition.
Remove INTAKE FILTER HOUSING .

Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).

Release screws on left and right.

Tightening torque 51 71 4AZ .

Remove cross-brace (1).

Installation:

Reinstall left and right holder for vacuum filter housing.

Fig 1: Locating Cross-Brace Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 7AZ .

Pull pressure sensor (3) out of right intercooler.

Installation:

Replace sealing ring on pressure sensor.

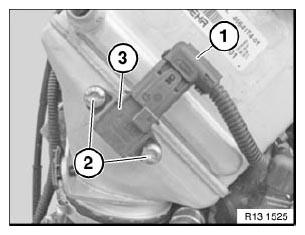

Fig 2: Identifying Pressure Sensor, Plug And Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Delete fault memory.
